基于PIC18系列（PIC18F4520）单片机+DHT11的温湿度采集系统的设计与制作（Proteus仿真部分）

Proteus仿真图：

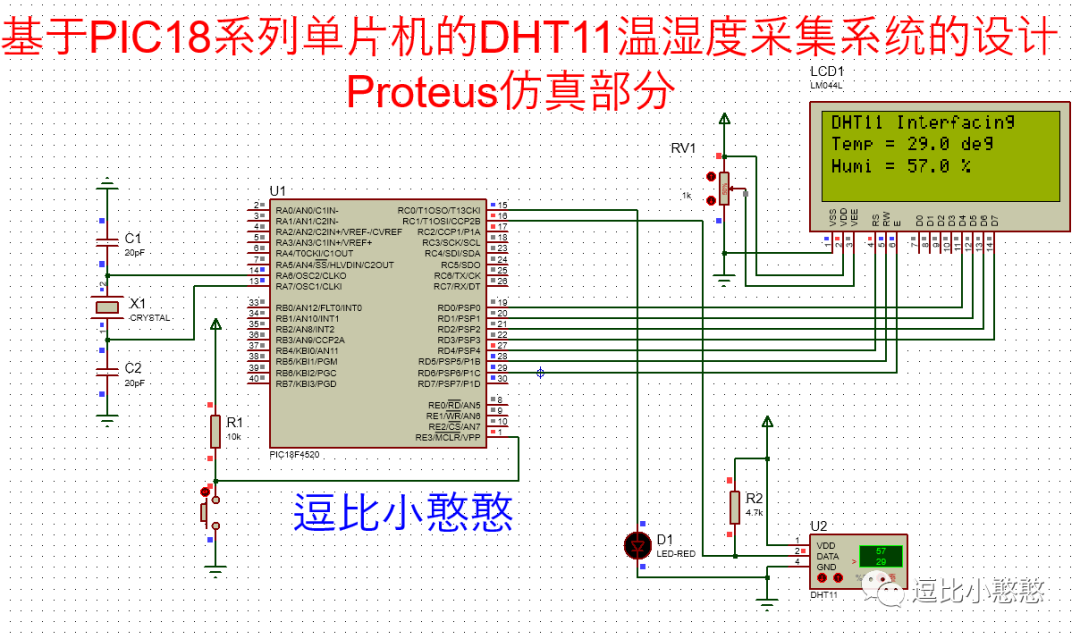

Proteus仿真连线图

程序源码：

//main.c
/*
* This Code is written to Developed to Extract Temperature and Humidity
* Data from the DHT11 Sensor using the one-wire Communication protocol.
* And Displays the Extracted Data on a 20x4 LCD Display.
* The Project uses an external XTAL of 4MHZ.
*
* Website: https://space.bilibili.com/314404732
//doubixiaohanhan
*/

#include "prototyper.h"

#pragma config OSC = HS
#pragma config LVP = OFF
#pragma config WDT = OFF

void main (void)
{
	unsigned char RH_Integral;
	unsigned char RH_Decimal;

	unsigned char Temp_Integral;
	unsigned char Temp_Decimal;

	unsigned char Checksum;

	unsigned char DataValid;

	Port_Init ();

	//doubixiaohanhan
	LCD_Init ();
	LCD_Stuff ();

	while (1)
	{
		DHT11_Start ();
		if (DHT11_Response ())
		{
			RH_Integral = DHT11_Read ();
			RH_Decimal  = DHT11_Read ();


			Temp_Integral = DHT11_Read ();
			Temp_Decimal  = DHT11_Read ();

			Checksum = DHT11_Read ();

			DataValid = Check_Parity (Checksum, RH_Integral, RH_Decimal, Temp_Integral, Temp_Decimal);

			if (DataValid)
			{
				DisplayTemp (Temp_Integral, Temp_Decimal);
				DisplayHumidity (RH_Integral, RH_Decimal);
				Delay10KTCYx (120);				// A minimum Sample Period of 1.2 seconds @4MHZ
			}

			else
			{
				Parity_Error ();
			}
		} //doubixiaohanhan

		else
		{
			Sensor_Unresponsive ();
		}
	}
}

//config.c

#include "prototyper.h"

void Port_Init (void)
{
	TRISCbits.TRISC2 = 0; 			// Pin Used to Check Pwr on Ckt
	LATCbits.LATC2   = 1; 			//

	TRISD = 0x00;					// Port used for LCD
	LATD  = 0x00;
}
//doubixiaohanhan
void LCD_Init (void)
{
	OpenXLCD (FOUR_BIT & LINES_5X7);
	while (BusyXLCD());
	WriteCmdXLCD (DISPLAY_ON);  		 // TURN DISPLAY ON cursor off
	while (BusyXLCD());
	WriteCmdXLCD (0x80);				 // begin at the first line
	while (BusyXLCD());
	WriteCmdXLCD (CLRSCR);	 			 // clear the lcd screen
}

void LCD_Stuff (void)
{
	while (BusyXLCD());
	putrsXLCD ("DHT11 Interfacing");

	while (BusyXLCD());
	WriteCmdXLCD (0xC0);
	while (BusyXLCD());
	putrsXLCD ("Temp = "); //doubixiaohanhan

	while (BusyXLCD());
	WriteCmdXLCD (0xC9);
	while (BusyXLCD());
	putrsXLCD (".");

	while (BusyXLCD());
	WriteCmdXLCD (0xCC);
	while (BusyXLCD());
	putrsXLCD ("deg");


	while (BusyXLCD());
	WriteCmdXLCD (0x94);
	while (BusyXLCD());
	putrsXLCD ("Humi = ");

	while (BusyXLCD());
	WriteCmdXLCD (0x9D);
	while (BusyXLCD());
	putrsXLCD (".");

	while (BusyXLCD());
	WriteCmdXLCD (0xA0);
	while (BusyXLCD());
	putrsXLCD ("%");
}

void SerialInit (void)
{
   RCSTAbits.SPEN 	 = 0;	// disable serial port before configuring other parameters
   TXSTAbits.SYNC    = 0;	// enable usart in asynchronous mode
   //doubixiaohanhan
   			/******************* BaudRater Generation *************************/
   BAUDCONbits.BRG16 = 0;	// use the 8 bit spbrg protocol
   TXSTAbits.BRGH    = 1;  	// use High speed
   SPBRG = 0x19;			// to get a baud rate of 9600 bps @4MHZ

   RCSTAbits.SPEN 	 = 1;	// enable serial port //doubixiaohanhan
   TXSTAbits.TXEN    = 1;	// enable usart transmit
}

//process.c

#include "prototyper.h"

void DelayFor18TCY (void)
{
	Delay10TCYx (2);		        // a delay of 20 TCY
}

void DelayPORXLCD (void)
{
	Delay1KTCYx (15);     			// a delay of 15ms at 4 MHZ
}
//doubixiaohanhan
void DelayXLCD (void)
{
	Delay1KTCYx (5);				// a delay of 5ms at 4 MHZ
}


void serialTx (unsigned char rx_data)
{
	TXREG = rx_data;
	Delay10TCY();
}

void DHT11_Start (void)
{
	Data_Dxn = 0; 				// DataPin is set as an Output pin

	Data_Out = 0; 				// Pull the DataBus line Low
	Delay1KTCYx (20); 			// A Delay of At least 18ms @4MHZ

	Data_Out = 1;
	Delay10TCYx (3);			// A Delay of atleast 30us @4MHZ

	Data_Dxn = 1; 				// DataPin set as an Input pin//doubixiaohanhan
}

short int  DHT11_Response (void)
{
	Delay10TCYx (4);			// A Delay of 40us @ 4MHZ

	if (Data_In == 0)			// If Data line is low
	{
		Delay10TCYx (8);		// A Delay of 80us @ 4MHZ

		if (Data_In == 1)		// If Data Line is High
		{
			Delay10TCYx (5);	// A Delay of 50us @ 4MHZ
			return 1;
		}
	}
}

unsigned char DHT11_Read (void)
{
	unsigned char i;
	unsigned char data = 0x00;
	unsigned char Time = 0;

	for (i = 0; i < 8; i++)
	{
		while (!Data_In)			// Wait Till Line goes High
		{
			Time++;
			if (Time > 100)
			{
				break;
			}

			Delay1TCY (); 			// A Delay of 1us @ 4MHZ
		}//doubixiaohanhan

		Delay10TCYx (3); 			// Wait for atleast 30us to check if bit is either 1 or 0

		if (!Data_In)				// Bit is 0
		{
			data = (data < < 1) | 0;
		}

		else
		{
			data = (data < < 1) | 1; // Bit is 1

			Time = 0;
			while (Data_In)			// Wait till Databus goes Low
			{
				Time++;
				if (Time > 100)
				{
					break;
				}

				Delay1TCY ();
			}
		}
	}

	return data;
}

unsigned char Check_Parity (unsigned char parity, unsigned char RHI, unsigned char RHD, unsigned char TI, unsigned char TD)
{
	if (parity == (RHI + RHD + TI + TD))
	{
		return 1;
	}
	else
	{
		return 0;
	}
}


void Humidity_Serial (unsigned char Int_Part, unsigned char Float_Part)
{
	unsigned char Tens;
	unsigned char Ones;
	unsigned char Dec;

	Tens = Int_Part / 10;
	Ones = Int_Part % 10;
	Dec = Float_Part;

	Tens += 48;				// Convet To ASCII Counterparts
	Ones += 48;  			//
	Dec  += 48; 			//

	serialTx ('H');
	Delay1KTCYx (2);
	serialTx ('\\r');

	serialTx (Tens);
	Delay1KTCYx (2);
	serialTx (Ones);
	Delay1KTCYx (2);
	serialTx ('.');
	Delay1KTCYx (2);
	serialTx (Dec);
	serialTx ('\\r');
	Delay1KTCYx (2);
	serialTx ('\\r');
	Delay1KTCYx (2);
}

void Temp_Serial (unsigned char Int_Part, unsigned char Float_Part)
{
	unsigned char Tens;
	unsigned char Ones;
	unsigned char Dec;

	Tens = Int_Part / 10;
	Ones = Int_Part % 10;
	Dec = Float_Part;

	Tens += 48;				// Convet To ASCII Counterparts
	Ones += 48;  			//
	Dec  += 48; 			//

	serialTx ('T');
	Delay1KTCYx (2);
	serialTx ('\\r');

	serialTx (Tens);
	Delay1KTCYx (2);
	serialTx (Ones);
	Delay1KTCYx (2);
	serialTx ('.');
	Delay1KTCYx (2);
	serialTx (Dec);
	serialTx ('\\r');
	Delay1KTCYx (2);
	serialTx ('\\r');
	Delay1KTCYx (2);
}

void ParityError (void)
{
	unsigned char i = 0;
	unsigned char Parity [] = "Parity Error";

	while (Parity [i] != '\\0')
	{
		serialTx (Parity [i]);
		i++;
		Delay1KTCYx (2);
	}

	serialTx ('\\r');
	Delay1KTCYx (2);
	serialTx ('\\r');
	Delay1KTCYx (2);

	Delay10KTCYx (50);
}

void SensorUnresponsive (void)
{
	unsigned char i = 0;
	unsigned char Response [] = "Sensor Unresponsive";

	while (Response [i] != '\\0')
	{
		serialTx (Response [i]);
		i++;
		Delay1KTCYx (2);
	}

	serialTx ('\\r');
	Delay1KTCYx (2);
	serialTx ('\\r');
	Delay1KTCYx (2);

	Delay10KTCYx (50);
}

void DisplayTemp (unsigned char Int_Part , unsigned char Float_Part)
{
	unsigned char Tens;
	unsigned char Ones;
	unsigned char Dec;

	Tens = Int_Part / 10;
	Ones = Int_Part % 10;
	Dec = Float_Part;

	while (BusyXLCD());
	WriteCmdXLCD (0xC7);

	if (Tens != 0)
	{
		while (BusyXLCD());
		WriteDataXLCD (Tens + 48);
	}

	else
	{
		while (BusyXLCD());
		putrsXLCD (" "); 		// Write nothing
	}

	while (BusyXLCD());
	WriteDataXLCD (Ones + 48);

	while (BusyXLCD());
	WriteCmdXLCD (0xCA);

	while (BusyXLCD());
	WriteDataXLCD (Dec + 48);
}

void DisplayHumidity (unsigned char Int_Part , unsigned char Float_Part)
{
	unsigned char Tens;
	unsigned char Ones;
	unsigned char Dec;

	Tens = Int_Part / 10;
	Ones = Int_Part % 10;
	Dec = Float_Part;

	while (BusyXLCD());
	WriteCmdXLCD (0x9B);


	while (BusyXLCD());
	WriteDataXLCD (Tens + 48);

	while (BusyXLCD());
	WriteDataXLCD (Ones + 48);

	while (BusyXLCD());
	WriteCmdXLCD (0x9E);

	while (BusyXLCD());
	WriteDataXLCD (Dec + 48);
}

void Parity_Error (void)
{
	while (BusyXLCD());
	WriteCmdXLCD (CLRSCR); 		// Clear Screen

	while (BusyXLCD());
	putrsXLCD ("Parity Error!!");

	while (BusyXLCD());
	WriteCmdXLCD (CLRSCR); 		// Clear Screen
}

void Sensor_Unresponsive (void)
{
	while (BusyXLCD());
	WriteCmdXLCD (CLRSCR); 		// Clear Screen

	while (BusyXLCD());
	putrsXLCD ("Sensor Unresponsive!");

	while (BusyXLCD());
	WriteCmdXLCD (CLRSCR); 		// Clear Screen
}

//prototyper.h

#include < p18f4520.h >
#include < delays.h >
#include < xlcd.h >

#define CLRSCR 		0x01
#define DISPLAY_ON 	0x0C
#define DISPLAY_OFF 0x08


#define Data_Dxn TRISCbits.TRISC1
#define Data_Out LATCbits.LATC1
#define Data_In  PORTCbits.RC1
//doubixiaohanhan
//doubixiaohanhan
void DHT11_Start (void);
short int DHT11_Response (void);
unsigned char DHT11_Read (void);
unsigned char Check_Parity (unsigned char, unsigned char, unsigned char, unsigned char, unsigned char);


void Port_Init (void);
void SerialInit (void);
void serialTx (unsigned char);

void Temp_Serial (unsigned char, unsigned char);
void Humidity_Serial (unsigned char, unsigned char);

void ParityError (void);
void SensorUnresponsive (void);

/*************************************** LCD Functions ************************************///doubixiaohanhan

void LCD_Init (void);
void LCD_Stuff (void);

void DisplayTemp (unsigned char, unsigned char);
void DisplayHumidity (unsigned char, unsigned char);

void Parity_Error (void);
void Sensor_Unresponsive (void);
