ST(意法半导体)汽车全局快门传感器 (Global Shutter CIS)

Vx5y61 Series : Automotive 1.6 - 2.3 megapixel high-dynamic global shutter image sensor

此产品系列具有 HDR 和超低噪声功能，可将近红外 (NIR) 场景的串扰降至最低。

适用于高端计算机机器视觉, 在汽车摄像模组上专注于车舱监控系统应用。

Use Cases :

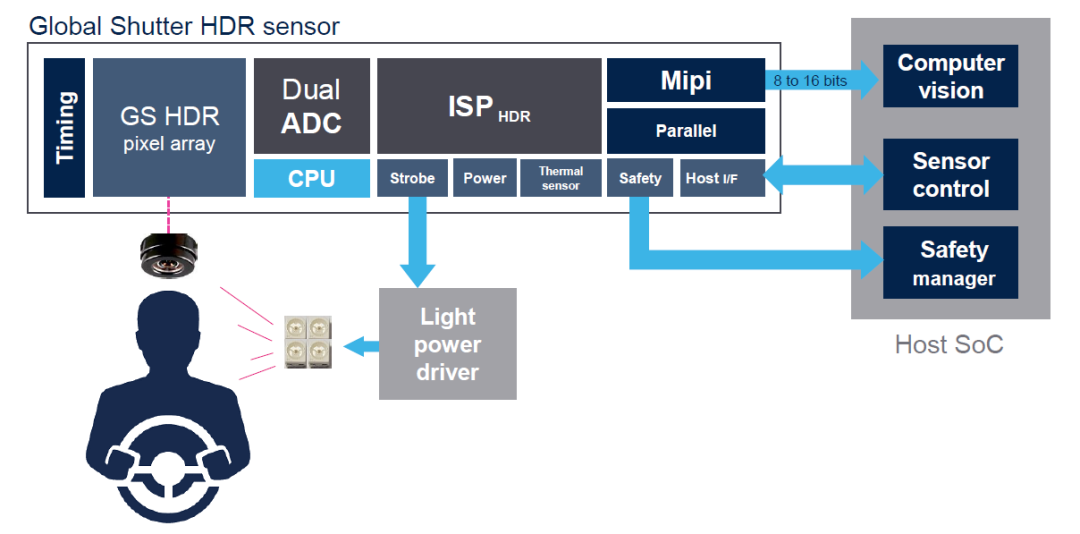

In-cabin sensing near-IR camera system

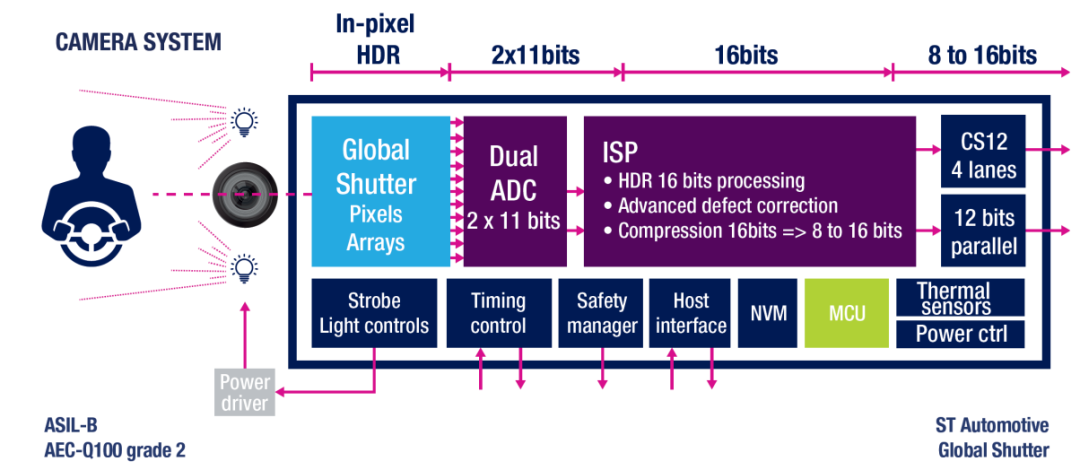

Block Diagram of Vx5y61

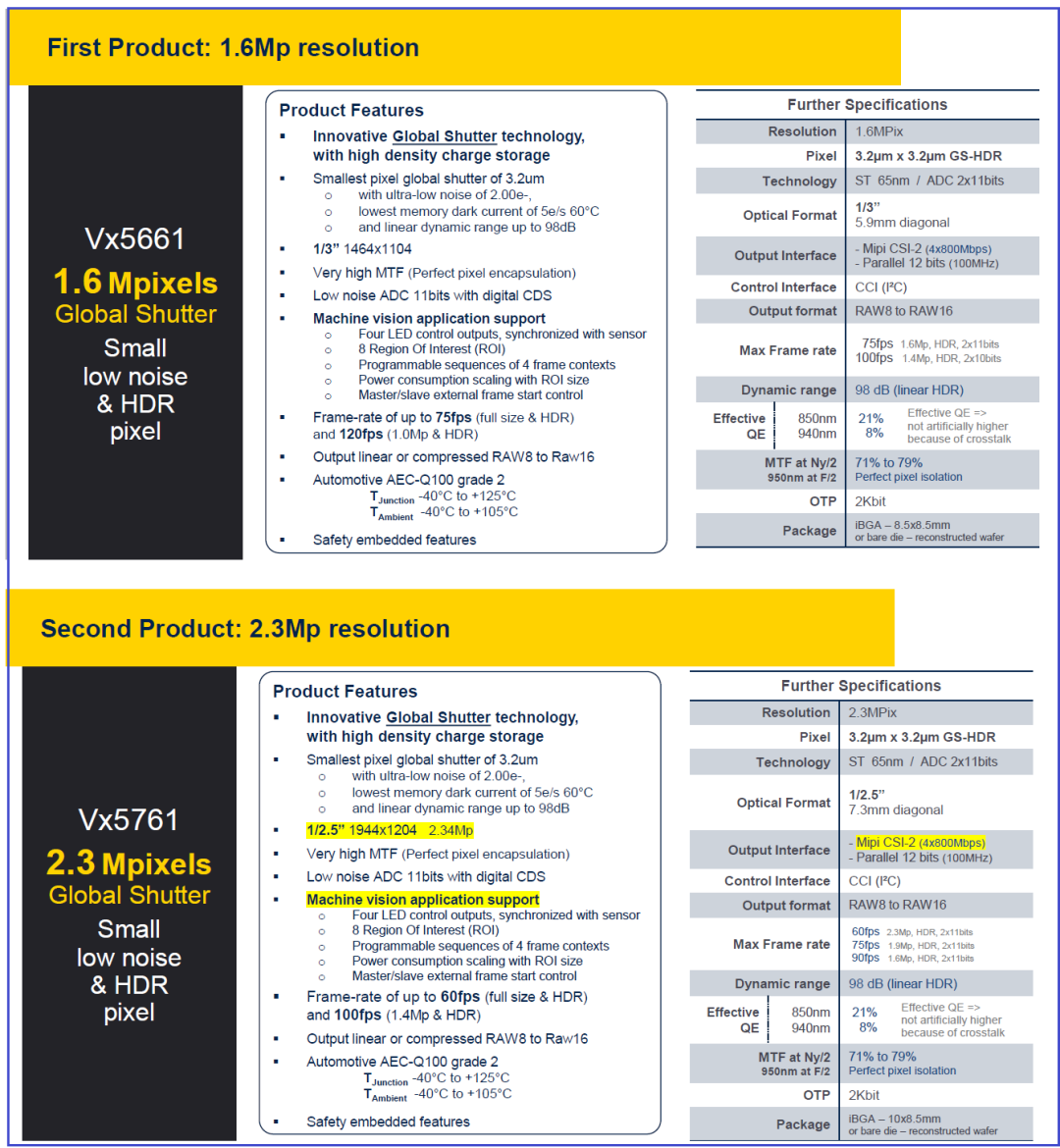

Vx5y61 Series Product Features and Specifications

Automotive In-cabin Camera

HDR for DMS

to manage complex ambient light (复杂的环境光环境)

Driver Monitoring

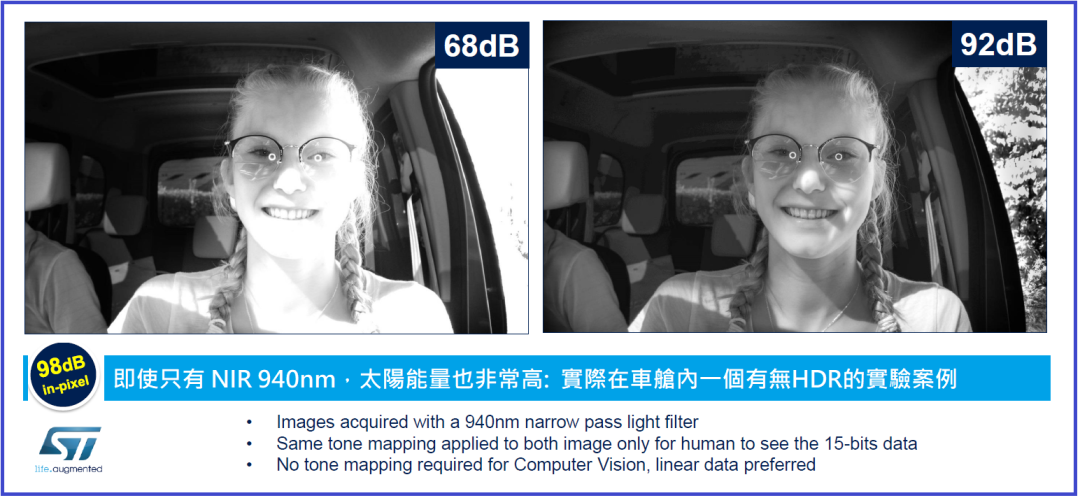

_对 HDR 传感器的需求(940nm Pass Only)

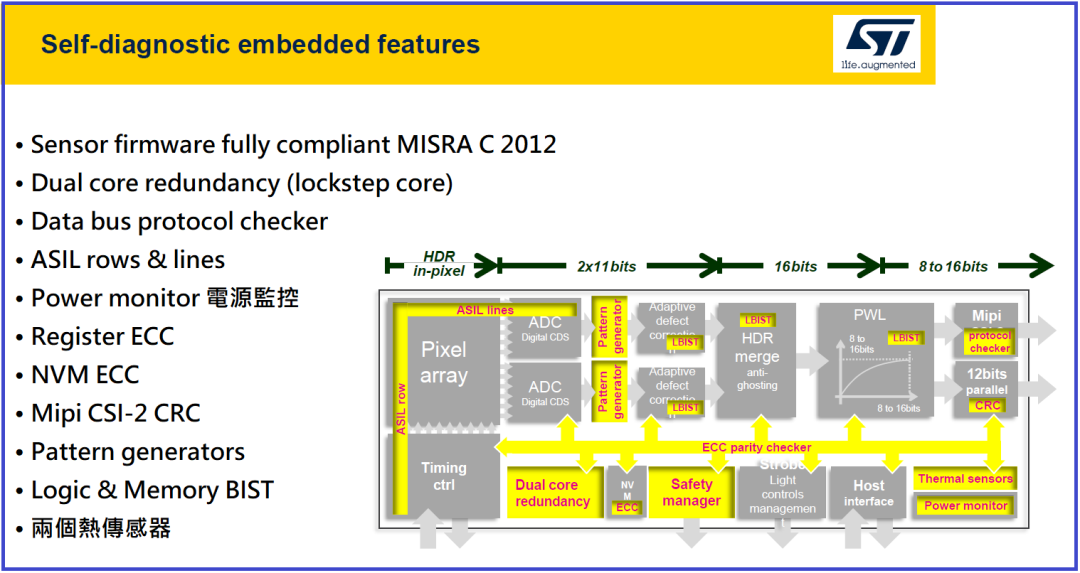

Self-diagnostic features for DMS : To provide reliable data to the host

车用安全之装置自我诊断功能 :
