EP9134 —HDMI分配芯片新亮点

Overview

The EP9134 is a 4-Port DVI/HDMI splitter with integrated HDCP decryption/encryption engines and is compliant with HDMI Rev 1.3b and HDCP Rev 1.2 specifications. The EP9134 receives DVI/HDMI inputs, process HDCP decryption and encryption and transmits the data to 4 DVI/HDMI ports. The chip uses an external EE to store the encrypted HDCP receiver/transmitter keys.



Feature

•    DVI Specification 1.0 Compliant
•    HDMI Specification 1.3b Compliant
•    Integrated HDCP decryption/encryption engines which are compliant with

      HDCP Rev 1.2 specification
•    Encrypted HDCP keys store in external serial EE
•    Wide Frequency Range: 25MHz - 225MHz
•    Support 12-bit Deep Color up to 1080p
•    Supports 1 DVI/HDMI input port and 4 DVI/HDMI output ports
•    Supports conversion of HDMI signaling to DVI signaling
•    Supports HDCP Repeater

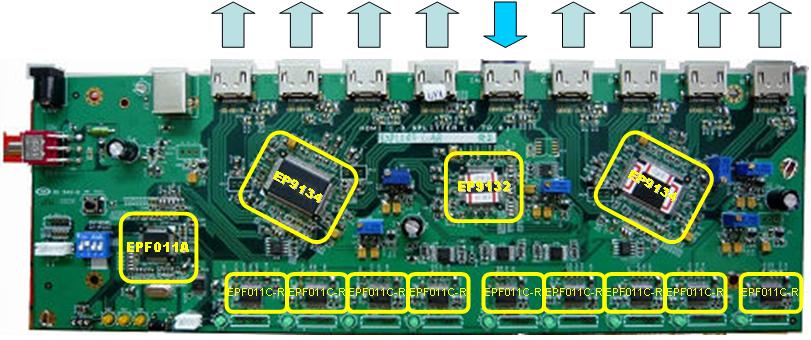

•    Cascadable to make more than 4 output ports
•    128-Pin HQFP (Pb-Free)
