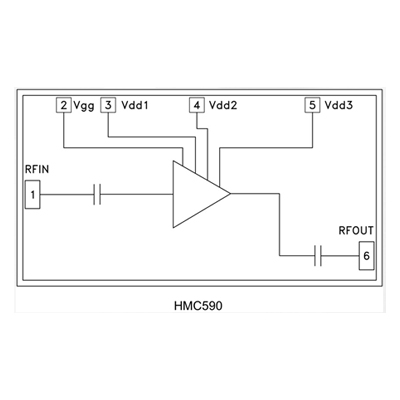

HMC590功率放大器

HMC590是一款高动态范围GaAs PHEMT MMIC 1 W功率放大器，工作频率范围为6至10 GHz。 该放大器裸片提供24 dB增益，饱和功率为+31.5 dBm，电源电压为+7.0V (25% PAE)。 隔直RF I/O匹配至50 Ω，可轻松集成到多芯片模块(MCM)中。

HMC590所有数据均通过50 Ω测试夹具中的芯片获取，通过直径为0.025mm (1 mil)、长度为0.31mm (12 mil)的线焊连接。 对于需要较佳OIP3的应用，Idd应设置为520 mA以产生+41 dBm OIP3。 对于需要较佳输出P1dB的应用，Idd应设置为820 mA以产生高达+32 dBm输出P1dB。

饱和输出功率：
+31.5 dBm (25% PAE)
输出IP3： +41 dBm
增益： 24 dB
直流电源： +7V (820 mA)
50 Ω匹配输入/输出
裸片尺寸： 2.47 x 1.33 x 0.1 mm

应用

点对点无线电
点对多点无线电
测试设备和传感器
军用最终用途
太空
