1、板载Celeron 3955U（2核2线程2.0GHz），可选Core i7-6600U（2核4线程2.6GHz）/ i5-6300U（2核4线程2.4GHz）处理器；
2、配置：4GB DDR4 2400工控内存，最高可支持32GB；
3、配置：128GB mSATA固态硬盘，可选其他容量的SSD/HDD硬盘；
4、6个千兆网口，4个网口支持IEEE 802.3at POE+；

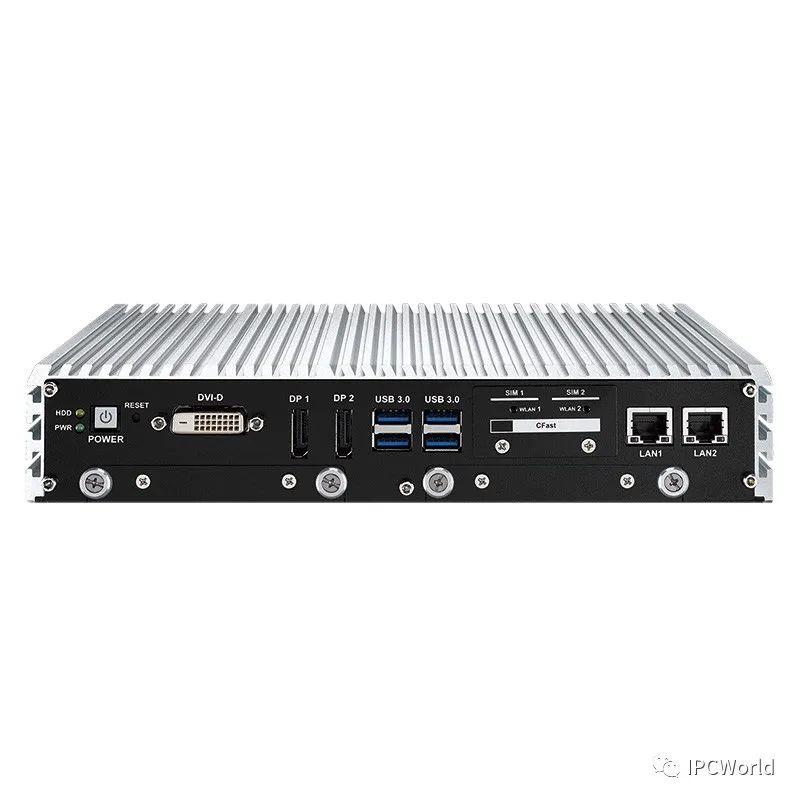

5、前控支持 : 2个2.5寸硬盘抽取盒、支持RAID0/1、2个SIM卡插槽、5个USB 3.0、1个CFast卡插槽；
6、超薄无风扇设计，支持-25℃至70℃工作温度；
7、16 Isolated DIO : 8 DI, 8 DO、16pin 内置GPIO；
8、DVI-D和双DisplayPort显示接口，最高可支持4K分辨率；
9、2个Mini PCIe，支持WiFi/3G/4G/LTE/GPRS/UMTS；
10、19V-6.32A 120W适配器，支持6V至36V直流输入、80V浪涌保护；
11、认证：CE, FCC, EN60945, EN50155, EN50121-3-2；

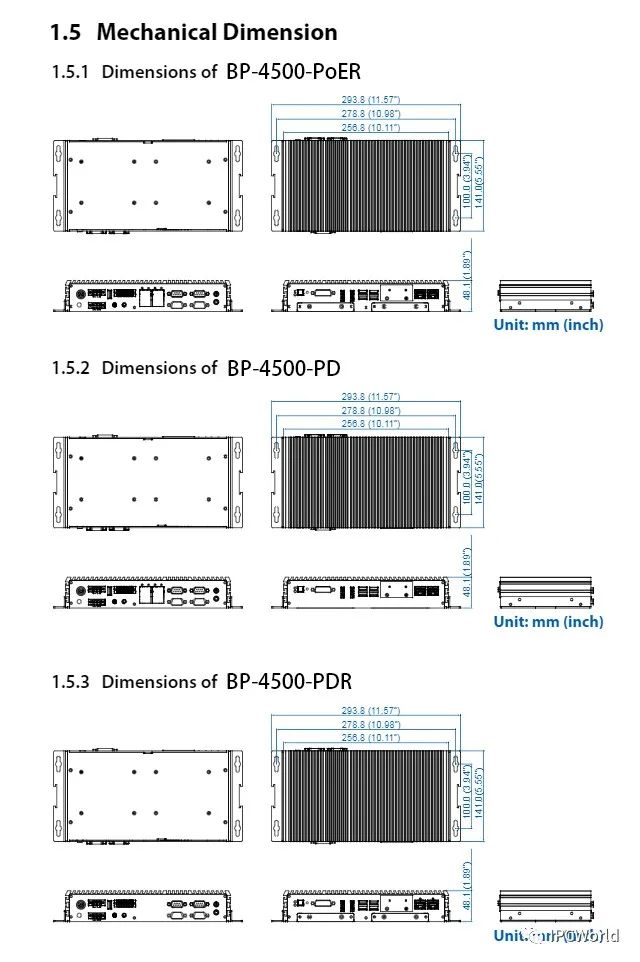

12、机械：尺寸257mm x 141mm x 48mm，重量2.1kg。
| 系统信息 | |
| 处理器 | Intel Core i7-6600U/ i5-6300U/ Celeron 3955U Processor (Skylake-U) |
| 芯片组 | Intel SoC |
| BIOS | AMI |
| SIO | IT8786E |
| 内存 | 2 DDR42133MHz SO-DIMMs, up to 32GB |
| 外置I/O接口 | |

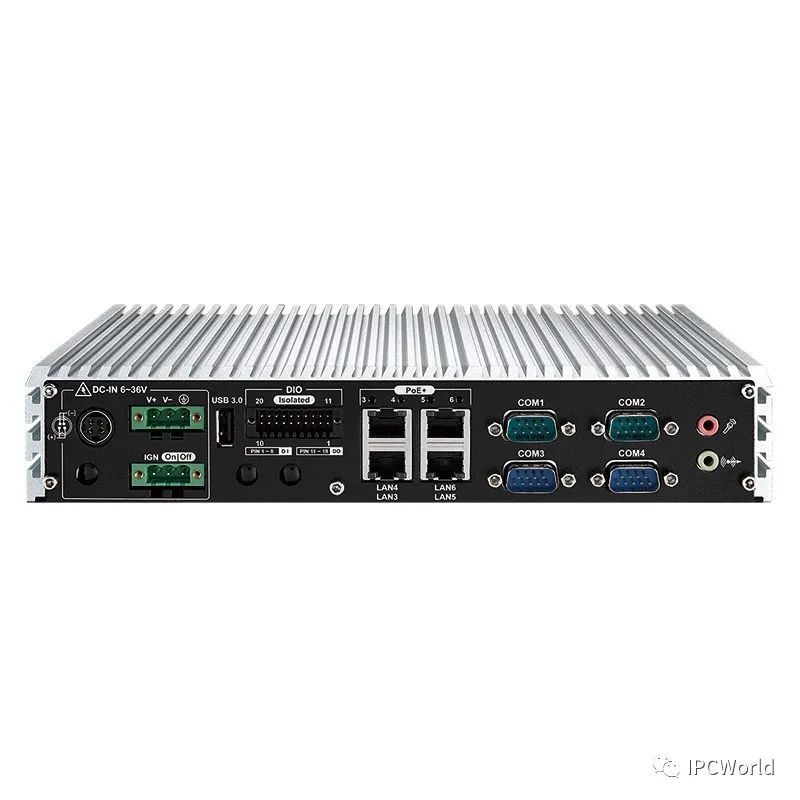

| 串口 | 4 COM RS-232/ 422/ 485 |
| USB | - 5个USB 3.0 (外置) - 3个USB 2.0 (3个内置) |
| Isolated DIO | 16 Isolated DIO :8 DI, 8 DO |
| GPIO | 16 GPIO (Internal) |
| 指示灯 | 电源指示灯,硬盘指示灯，无线网络指示灯，POE指示灯 |
| SIM卡槽 | 2个SIM Card卡槽 |
| 扩展插槽 | |
| Mini PCIe | 2 Mini PCIe Socket: - 1 Full-size forPCIe/ USB/ External SIM Card - 1 Full-size for PCIe/ USB/ External SIM Card/ mSATA |
| 显示 | |
| 显卡 | Intel HD Graphics 520 |
| 显示接口 | - DVI-D : Up to 1920 x 1200 @ 60Hz - DisplayPort 1 : Up to 4096 x 2304 @ 60Hz - DisplayPort 2 : Up to 4096 x 2304 @ 60Hz |
| 存储 | |
| SATA | 2 SATA III (6Gbps) support S/W RAID 0, 1 |
| mSATA | 1 SATA III (Mini PCIe Type, 6Gbps) |
| 存储设备 | - 1个CFast Slot, Push-in/ Push-out Ejector - 2个2.5" SSD/ HDD Tray插拔盒 |
| 音频 | |
| 声卡芯片 | Realtek ALC892, 5.1 Channel HD Audio |
| 音频接口 | 1 Mic-in, 1 Line-out |
| 网络 | |
| LAN 1 | Intel I219LM GigE LAN supports iAMT 11.0 |
| LAN 2 | Intel I210GigE LAN |
| PoE | |
| LAN 3 | Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel I210 |
| LAN 4 | Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel I210 |
| LAN 5 | Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel I210 |
| LAN 6 | Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel I210 |
| 供电 | |
| 输入电压 | 6V to 36V, DC-in |
| 输出电压 | - 3-pin Terminal Block : V+, V-, Frame Ground - Mini-DIN 4-pin |
| Ignition Control | 16 Mode(Internal) |
| 远程开关 | 3-pin Terminal Block : On, Off, IGN |
| 过压保护 | Up to 80V/1ms Transient Power |
| 其他 | |
| TPM | Optional Infineon SLB9665 supports TPM 2.0, LPC Interface |
| 看门狗 | Reset : 1 to 255 sec./min. per step |
| Smart Management | Wake on LAN, PXE supported |
| HW Monitor | Monitoring temperature, voltages. Auto throttling control when CPU overheats |
| 支持系统 | |
| OS | Windows 10, Windows 8.1, Windows 7, Linux |
| 机械 | |
| Dimension (W x L x H) | 257mm x 141mm x 48mm (10.1” x 5.6” x 1.9”) |
| Weight | 2.1 kg (4.6 lb) |
| Mounting | -Wallmount by mounting bracket -DIN Rail Mount (Optional) |
| 环境 | |
| Operating Temperature | -25°C to 70°C (-13°F to 157°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% at 70°C |
| Shock | - IEC 60068-2-27 - SSD : 50G @ wallmount, Half-sine, 11ms |
| Vibration | - IEC 60068-2-64 - SSD : 5Grms, 5Hz to 500Hz, 3 Axis |
| EMC | CE, FCC, EN60945,EN50155, EN50121-3-2 |
