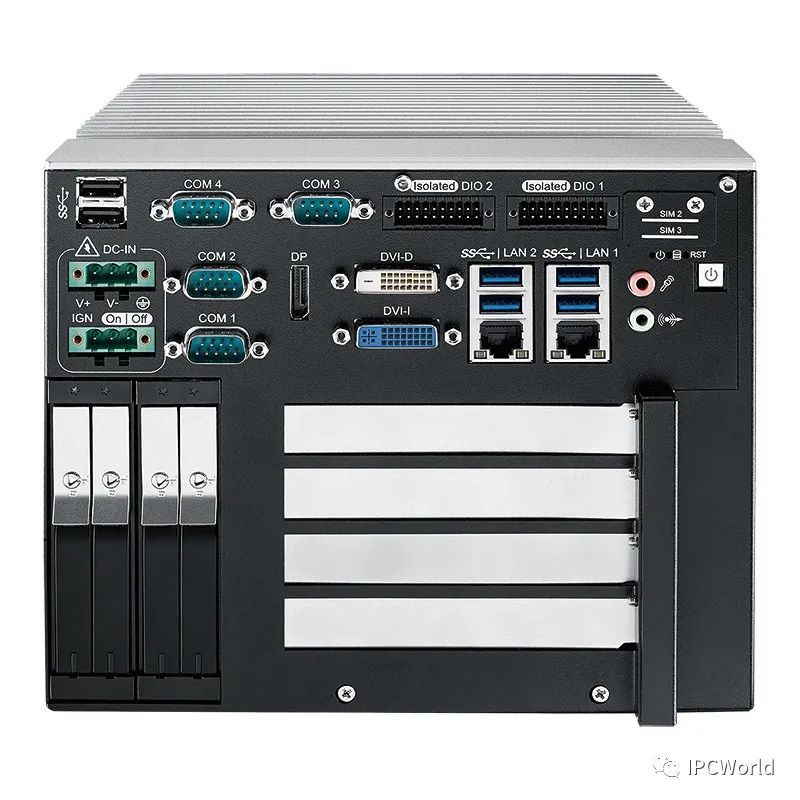

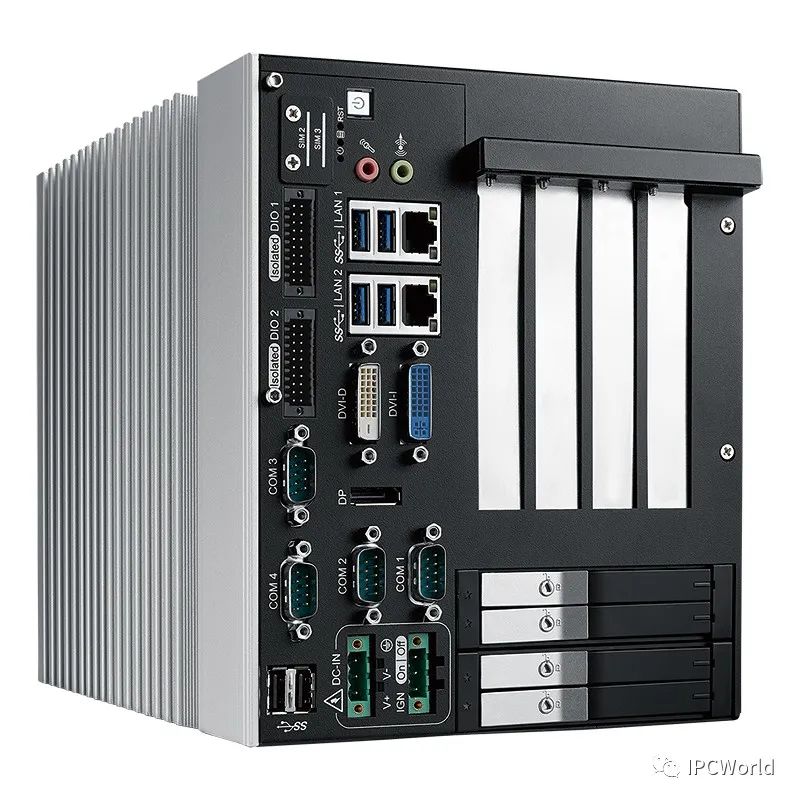

BPX-9422R-R0AE 可扩充无风扇嵌入式系统
1、配置：Intel酷睿i3-6300（2核4线程3.80GHz），可选其他6th/7th 代LGA 1151 Intel Xeon/Core i7/i5/i3 系列TDP80W以内处理器；
2、Intel C236芯片组，嵌入式无风扇EN50155, EN50121-3-2工控机；
3、配置：8GB DDR4 2400工控内存，最大尺寸32GB；
4、外置DVI-I、DVI-D、DisplayPort显示接口，支持3个独立高清显示器；
5、配置：128GB mSATA固态硬盘，可选其他容量的SSD/HDD；
6、宽温工作温度-40°C to 75°C；
7、6V to 36V宽幅工作电压，支持80V过压保护，
8、2个RJ45 Intel芯千兆网口，支持iAMT 11.0 ；
9、3个SIM卡槽，支持3G/4G/LTE/WiFi/GPRS/UMTS ；
10、4个2.5" SSD/HDD支持软RAID 0, 1, 5, 10 ；
11、外置2个SIM卡槽，4个2.5寸热插拔盒，1个CFast卡槽，6个USB，4个DB9 RS-232/422/485通讯串口；
12、1个PCIe x16，1个PCIe x4，2个PCI扩展插槽，最大支持250W功耗的PCI/PCIe扩展卡；
13、7个USB（1个内置USB2.0）,4个COM，3个Mini PCIe，32pin DIO；
14、尺寸：172mm x 250mm x 210mm (6.8" x 9.8" x 8.3")，重量：5kg。
| System | |
| Processor | Quad Core Intel Xeon/Core i7/i5/i3 Processor (Kaby Lake-S/Skylake-S) |
| Chipset | Intel C236 |
| BIOS | AMI |
| SIO | IT8786E |
| Memory | 2 DDR42133MHz SO-DIMM, up to 32GB(ECC/Non-ECC) |
| I/O Interface | |
| Serial | 4 COM RS-232/422/485 |
| USB | - 7USB 3.0 (6 External, 1 Internal) - 2USB 2.0 (Internal) |
| Isolated DIO | 32Isolated DIO : 16DI, 16DO |
| LED | Power, HDD |
| SIM Card | 3SIM Card Socket(2External, 1 Internal) |
| Expansion | |
| Mini PCIe | 3 Mini PCIe Socket : - 2 Full-sizeMini PCIe for PCIe/USB/External SIM Card - 1 Full-sizeMini PCIefor PCIe/USB/Internal SIM Card/mSATA |
| PCIe | - 1 PCIe x16Slot - 1PCIe x4 Slot |
| PCI | 2 PCI Slot |
| Graphics | |
| Graphics Processor | Intel HD Graphics 530 |
| Interface | - DVI-I: Up to 1920 x 1200 @ 60Hz - DVI-D: Up to 1920x 1200@ 60Hz - DisplayPort : Up to 4096 x 2304 @ 60Hz |
| Storage | |
| SATA | 4SATA III (6Gbps) support S/W RAID 0, 1, 5, 10 |
| mSATA | 1SATA III (Mini PCIe Type, 6Gbps) |
| Storage Device | - 1 CFast Socket (Internal) - 42.5" SSD/HDD Tray |
| Audio | |
| Audio Codec | Realtek ALC892, 5.1 Channel HD Audio |
| Audio Interface | 1 Mic-in, 1 Line-out |
| Ethernet | |
| LAN 1 | Intel I219LM Gigabit LAN supports iAMT 11.0 |
| LAN 2 | Intel I210 Gigabit LAN |
| Power | |
| Power Input | 6V to 36V, DC-in |
| Power Interface | 3-pin Terminal Block : V+, V-, Frame Ground |
| Ignition Control | 16 Mode(Internal) |
| Remote Switch | 3-pin Terminal Block |
| Surge Protection | Up to 80V/1ms Transient Power |
| Others | |
| TPM | Optional Infineon SLB9665 supports TPM 2.0, LPC Interface |
| Watchdog Timer | Reset : 1 to 255 sec./min. per step |
| Smart Management | Wake on LAN, PXE supported |
| HW Monitor | Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
| Software Support | |
| OS | Windows 10, Windows 8.1, Windows 7, Linux |
| Mechanical | |

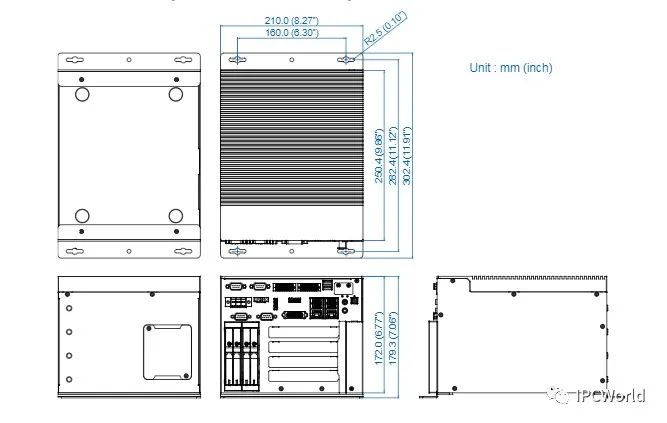

| Dimension (W x L x H) | 172mm x 250mm x 210mm (6.8" x 9.8" x 8.3") |
| Weight | BPX-9400R 系列: 5 kg (11 lb) BPX-9400 系列: 3.8 kg (8.4 lb) |
| Mounting | Wallmount by mounting bracket |
| Environment | |
| Operating Temperature | 35W TDP CPU : -Core i7, i5, i3 : -40°C to 75°C (-40°F to 167°F) -Xeon E3-1268L v5 : -40°C to 70°C (-40°F to 158°F) 65W TDP CPU : Core i7, i5, i3 : -40°C to 55°C (-40°F to 131°F) 80W TDP CPU : Xeon E3-1275 v6, E3-1275 v5, E3-1225 v5 : -40°C to 45°C (-40°F to 113°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% at 70°C |
| Shock | - IEC 60068-2-27 - SSD : 50G @ wallmount, Half-sine, 11ms |
| Vibration | - IEC 60068-2-64 - SSD : 5Grms, 5Hz to 500Hz, 3 Axis |
| EMC | CE, FCC, EN50155, EN50121-3-2 |
