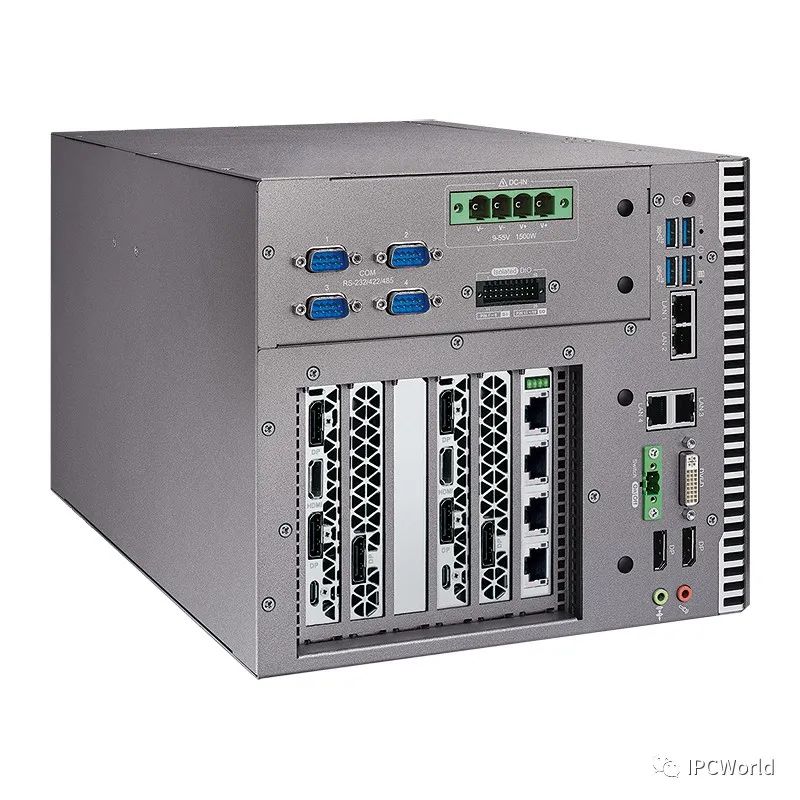

BPX-1000-R0AE 边缘工业无风扇计算机
1、配置：Intel酷睿i3-8300（4核4线程3.7GHz），可选其他8th/9th系列8核Intel Xeon/Core i7/i5/i3 TDP80W以内高性能处理器（如：E-2278GE/E-2176G/E-2226GE/i7-9700/i7-8700/等）；
2、配置：8GB DDR4 2400工控内存，最大支持64GB；
3、配置：128GB mSATA固态硬盘，可选其他容量SSD/机械硬盘；
4、Intel C246芯片组；
5、单电9V to 55V宽压电源输入；
6、4个扩展插槽：2个PCIe x8，1个PCIe x4，1个PCIe x1,
最大支持2个全高显卡；
7、最大1500W功耗扩展卡，单个最大功耗支持 NVIDIA Tesla/
Quadro/GeForce or AMD Radeon等750W以内的显卡；
8、4个Intel芯千兆网口，支持iAMT 12.0；
9、4个外置USB 3.1接口，最大10Gbps数据传输；
10、支持WiFi/4G/3G/LTE/GPRS/UMTS无线传输；
11、2个SATA III接口，4个COM（RS-232/422/485），16pin DIO；
12、可选5G无线网络，10G PoE+网口。
| 系统信息 | |
| 处理器 | 支持8th/9th系列8核Intel Xeon/Core i7/i5/i3高性能处理器 |
| 芯片组 | IntelC246 |
| BIOS | AMI |
| SIO | IT8786E |
| 内存 | 2根DDR4 2666MHz SO-DIMM插槽，最大支持64GB内存 |
| 外置I/O | |
| 串口 | 4 COM RS-232/422/485 (ESD 8KV) |
| USB | 4USB 3.1 |
| 数字IO | 16pin DIO : 8DI, 8DO |
| 指示灯 | 电源指示灯，硬盘工作灯 |
| SIM卡槽 | 1个外置SIM卡槽 |
| 扩展插槽 | |
| 迷你PCIe插槽 | -1个全长插槽，支持PCIe/USB/External SIM Card -1个全长插槽，支持PCIe/USB/mSATA |
| PCIe | 4 PCIe Slot： -2 PCIe x16 slot with PCIe x8 signal -1 PCIe x16 slot with PCIe x4 signal -1 PCIe x16 slot with PCIe x1 signal |
| SUMIT A, B | 2 SUMIT Slot (Optinal) |
| 显示 | |
| 显卡 | - Intel UHD graphics630 -Independent Graphics 1：By request -Independent Graphics 2：By request |
| 显示接口 | Multipleindependent displays : - 1 DVI-D : Up to 1920 x 1200 @60Hz - 2DisplayPort : Up to 4096 x 2304 @60Hz - By requested Graphics Card |
| 存储 | |
| SATA | 2 SATA III (6Gbps) support S/W RAID 0, 1 |
| mSATA | 1 SATA III (Mini PCIe type, 6Gbps) |
| Storage Device | 2 Internal2.5" SSD/HDD Bracket |
| Audio | |
| Audio Codec | Realtek ALC892, 5.1 Channel HD Audio |
| Audio Interface | 1 Mic-in, 1 Line-out |
| Ethernet | |
| LAN 1 | Intel I219LM GigE LAN supports iAMT 12.0 |
| LAN 2 | Intel I210 GigE LAN |
| LAN 3 | Intel I210 GigE LAN |
| LAN 4 | Intel I210 GigE LAN |
| Power | |
| Power Input | 9V to 55V DC-in |
| Power Interface | 4-pin Terminal Block |
| Remote Switch | 2-pin Terminal Block |
| Surge Protection | Up to 80V/1ms Transient Power |
| Others | |
| TPM | Infineon SLB9665, LPC interface |
| Watchdog Timer | Reset : 1 to 255 sec./min. per step |
| Smart Management | Wake on LAN, PXE supported |
| HW Monitor | Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
| Software Support | |
| OS | Windows 10, Linux |
| Mechanical | |

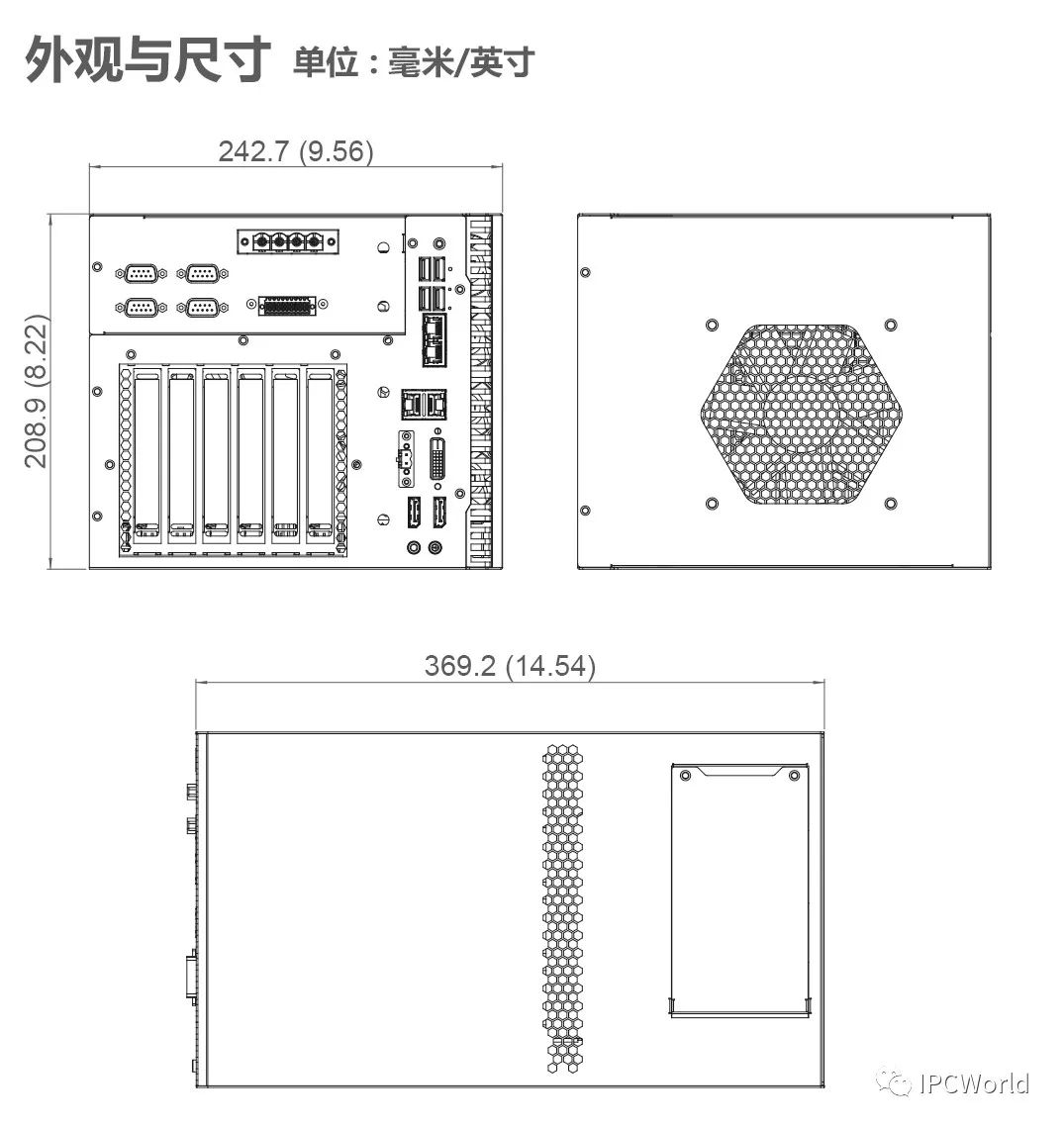

| Dimension (W x L x H) | 242.7mm x 208.9mm x 369.2mm (9.56" x 8.22" x 14.54") |
| Weight | 9.0 kg (19.8lb) |
| Mounting | Wallmount by mounting bracket |
| Environment | |
| Operating Temperature | -25°C to 60°C (-6°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% @60°C |
| Shock/Vibration | - IEC 61373 : 2010 - Railway Applications : Rolling Stock Equipment, Shock and Vibration Test |
| EMC | CE, FCC, EN50155, EN50121-3-2 |
