如何利用MicroBlaze实现大内部存储器设计

MicroBlaze可以使用AXI BRAM存放数据和指令。有些客户软件很大，需要把AXI BRAM的空间做到最大。AXI BRAM底层是Block RAM或者Ultra RAM。器件的Block RAM或者Ultra RAM个数，决定了AXI BRAM的大小。

在ZCU106单板上，有312个Block RAM，有96个Ultra RAM。客户需要1MB存储空间。实现MicroBlaze时，也使用Block RAM实现Cache，和Local Memory。剩下的个Block RAM不够做1MB的AXI BRAM。为了实现1MB空间，可以用Block RAM实现512KB AXI BRAM、256KB AXI BRAM；再使用Ultra RAM实现256KB AXI BRAM。为这三个AXI BRAM分配连续的地址空间，从而使软件感觉到这是一个存储器。其中，Block RAM和Ultra RAM还可以根据实际情况调整，比如用Block RAM实现512KB AXI BRAM；用Ultra RAM实现512KB AXI BRAM，两个存储器也可以实现1MB存储空间。

Vivado的Block设计

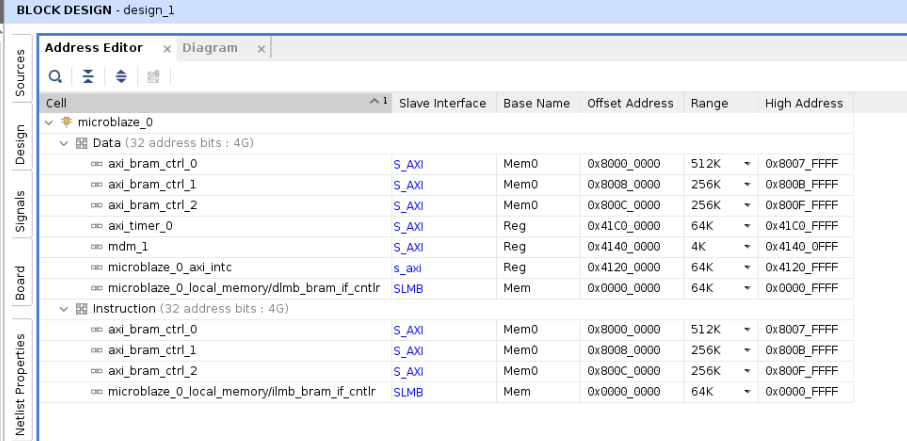

Vivado的地址分配

Vivado的器件资源使用情况

下面是Vivado IP Integrator的TCL脚本。

################################################################
# This is a generated script based on design: design_1
#
# Though there are limitations about the generated script,
# the main purpose of this utility is to make learning
# IP Integrator Tcl commands easier.
################################################################

namespace eval _tcl {
proc get_script_folder {} {
set script_path [file normalize [info script]]
set script_folder [file dirname $script_path]
return $script_folder
}
}
variable script_folder
set script_folder [_tcl::get_script_folder]

################################################################
# Check if script is running in correct Vivado version.
################################################################
set scripts_vivado_version 2018.3
set current_vivado_version [version -short]

if { [string first $scripts_vivado_version $current_vivado_version] == -1 } {
puts ""
common::send_msg_id "BD_TCL-1002" "WARNING" "This script was generated using Vivado without IP versions in the create_bd_cell commands, but is now being run in of Vivado. There may have been major IP version changes between Vivado and , which could impact the parameter settings of the IPs."

}

################################################################
# START
################################################################

# To test this script, run the following commands from Vivado Tcl console:
# source design_1_script.tcl

# If there is no project opened, this script will create a
# project, but make sure you do not have an existing project
# <.> in the current working folder.

set list_projs [get_projects -quiet]
if { $list_projs eq "" } {
create_project project_1 myproj -part xczu7ev-ffvc1156-2-e
set_property BOARD_PART xilinx.com:zcu106:part0:2.3 [current_project]
}

# CHANGE DESIGN NAME HERE
variable design_name
set design_name design_1

# If you do not already have an existing IP Integrator design open,
# you can create a design using the following command:
# create_bd_design $design_name

# Creating design if needed
set errMsg ""
set nRet 0

set cur_design [current_bd_design -quiet]
set list_cells [get_bd_cells -quiet]

if { ${design_name} eq "" } {
# USE CASES:
# 1) Design_name not set

set errMsg "Please set the variable to a non-empty value."
set nRet 1

} elseif { ${cur_design} ne "" && ${list_cells} eq "" } {
# USE CASES:
# 2): Current design opened AND is empty AND names same.
# 3): Current design opened AND is empty AND names diff; design_name NOT in project.
# 4): Current design opened AND is empty AND names diff; design_name exists in project.

if { $cur_design ne $design_name } {
common::send_msg_id "BD_TCL-001" "INFO" "Changing value of from to since current design is empty."
set design_name [get_property NAME $cur_design]
}
common::send_msg_id "BD_TCL-002" "INFO" "Constructing design in IPI design ..."

} elseif { ${cur_design} ne "" && $list_cells ne "" && $cur_design eq $design_name } {
# USE CASES:
# 5) Current design opened AND has components AND same names.

set errMsg "Design already exists in your project, please set the variable to another value."
set nRet 1
} elseif { [get_files -quiet ${design_name}.bd] ne "" } {
# USE CASES:
# 6) Current opened design, has components, but diff names, design_name exists in project.
# 7) No opened design, design_name exists in project.

set errMsg "Design already exists in your project, please set the variable to another value."
set nRet 2

} else {
# USE CASES:
# 8) No opened design, design_name not in project.
# 9) Current opened design, has components, but diff names, design_name not in project.

common::send_msg_id "BD_TCL-003" "INFO" "Currently there is no design in project, so creating one..."

create_bd_design $design_name

common::send_msg_id "BD_TCL-004" "INFO" "Making design as current_bd_design."
current_bd_design $design_name

}

common::send_msg_id "BD_TCL-005" "INFO" "Currently the variable is equal to /"$design_name/"."

if { $nRet != 0 } {
catch {common::send_msg_id "BD_TCL-114" "ERROR" $errMsg}
return $nRet
}

set bCheckIPsPassed 1
##################################################################
# CHECK IPs
##################################################################
set bCheckIPs 1
if { $bCheckIPs == 1 } {
set list_check_ips "/
xilinx.com:ip:axi_bram_ctrl:*/
xilinx.com:ip:blk_mem_gen:*/
xilinx.com:ip:axi_timer:*/
xilinx.com:ip:clk_wiz:*/
xilinx.com:ip:mdm:*/
xilinx.com:ip:microblaze:*/
xilinx.com:ip:axi_intc:*/
xilinx.com:ip:xlconcat:*/
xilinx.com:ip:proc_sys_reset:*/
xilinx.com:ip:lmb_bram_if_cntlr:*/
xilinx.com:ip:lmb_v10:*/
"

set list_ips_missing ""
common::send_msg_id "BD_TCL-006" "INFO" "Checking if the following IPs exist in the project's IP catalog: $list_check_ips ."

foreach ip_vlnv $list_check_ips {
set ip_obj [get_ipdefs -all $ip_vlnv]
if { $ip_obj eq "" } {
lappend list_ips_missing $ip_vlnv
}
}

if { $list_ips_missing ne "" } {
catch {common::send_msg_id "BD_TCL-115" "ERROR" "The following IPs are not found in the IP Catalog:/n $list_ips_missing/n/nResolution: Please add the repository containing the IP(s) to the project." }
set bCheckIPsPassed 0
}

}

if { $bCheckIPsPassed != 1 } {
common::send_msg_id "BD_TCL-1003" "WARNING" "Will not continue with creation of design due to the error(s) above."
return 3
}

##################################################################
# DESIGN PROCs
##################################################################

# Hierarchical cell: microblaze_0_local_memory
proc create_hier_cell_microblaze_0_local_memory { parentCell nameHier } {

variable script_folder

if { $parentCell eq "" || $nameHier eq "" } {
catch {common::send_msg_id "BD_TCL-102" "ERROR" "create_hier_cell_microblaze_0_local_memory() - Empty argument(s)!"}
return
}

# Get object for parentCell
set parentObj [get_bd_cells $parentCell]
if { $parentObj == "" } {
catch {common::send_msg_id "BD_TCL-100" "ERROR" "Unable to find parent cell !"}
return
}

# Make sure parentObj is hier blk
set parentType [get_property TYPE $parentObj]
if { $parentType ne "hier" } {
catch {common::send_msg_id "BD_TCL-101" "ERROR" "Parent has TYPE = . Expected to be ."}
return
}

# Save current instance; Restore later
set oldCurInst [current_bd_instance .]

# Set parent object as current
current_bd_instance $parentObj

# Create cell and set as current instance
set hier_obj [create_bd_cell -type hier $nameHier]
current_bd_instance $hier_obj

# Create interface pins
create_bd_intf_pin -mode MirroredMaster -vlnv xilinx.com:interface:lmb_rtl:1.0 DLMB
create_bd_intf_pin -mode MirroredMaster -vlnv xilinx.com:interface:lmb_rtl:1.0 ILMB

# Create pins
create_bd_pin -dir I -type clk LMB_Clk
create_bd_pin -dir I -type rst SYS_Rst

# Create instance: dlmb_bram_if_cntlr, and set properties
set dlmb_bram_if_cntlr [ create_bd_cell -type ip -vlnv xilinx.com:ip:lmb_bram_if_cntlr dlmb_bram_if_cntlr ]
set_property -dict [ list /
CONFIG.C_ECC {1} /
] $dlmb_bram_if_cntlr

# Create instance: dlmb_v10, and set properties
set dlmb_v10 [ create_bd_cell -type ip -vlnv xilinx.com:ip:lmb_v10 dlmb_v10 ]

# Create instance: ilmb_bram_if_cntlr, and set properties
set ilmb_bram_if_cntlr [ create_bd_cell -type ip -vlnv xilinx.com:ip:lmb_bram_if_cntlr ilmb_bram_if_cntlr ]
set_property -dict [ list /
CONFIG.C_ECC {1} /
] $ilmb_bram_if_cntlr

# Create instance: ilmb_v10, and set properties
set ilmb_v10 [ create_bd_cell -type ip -vlnv xilinx.com:ip:lmb_v10 ilmb_v10 ]

# Create instance: lmb_bram, and set properties
set lmb_bram [ create_bd_cell -type ip -vlnv xilinx.com:ip:blk_mem_gen lmb_bram ]
set_property -dict [ list /
CONFIG.Memory_Type {True_Dual_Port_RAM} /
CONFIG.use_bram_block {BRAM_Controller} /
] $lmb_bram

# Create interface connections
connect_bd_intf_net -intf_net microblaze_0_dlmb [get_bd_intf_pins DLMB] [get_bd_intf_pins dlmb_v10/LMB_M]
connect_bd_intf_net -intf_net microblaze_0_dlmb_bus [get_bd_intf_pins dlmb_bram_if_cntlr/SLMB] [get_bd_intf_pins dlmb_v10/LMB_Sl_0]
connect_bd_intf_net -intf_net microblaze_0_dlmb_cntlr [get_bd_intf_pins dlmb_bram_if_cntlr/BRAM_PORT] [get_bd_intf_pins lmb_bram/BRAM_PORTA]
connect_bd_intf_net -intf_net microblaze_0_ilmb [get_bd_intf_pins ILMB] [get_bd_intf_pins ilmb_v10/LMB_M]
connect_bd_intf_net -intf_net microblaze_0_ilmb_bus [get_bd_intf_pins ilmb_bram_if_cntlr/SLMB] [get_bd_intf_pins ilmb_v10/LMB_Sl_0]
connect_bd_intf_net -intf_net microblaze_0_ilmb_cntlr [get_bd_intf_pins ilmb_bram_if_cntlr/BRAM_PORT] [get_bd_intf_pins lmb_bram/BRAM_PORTB]

# Create port connections
connect_bd_net -net SYS_Rst_1 [get_bd_pins SYS_Rst] [get_bd_pins dlmb_bram_if_cntlr/LMB_Rst] [get_bd_pins dlmb_v10/SYS_Rst] [get_bd_pins ilmb_bram_if_cntlr/LMB_Rst] [get_bd_pins ilmb_v10/SYS_Rst]
connect_bd_net -net microblaze_0_Clk [get_bd_pins LMB_Clk] [get_bd_pins dlmb_bram_if_cntlr/LMB_Clk] [get_bd_pins dlmb_v10/LMB_Clk] [get_bd_pins ilmb_bram_if_cntlr/LMB_Clk] [get_bd_pins ilmb_v10/LMB_Clk]

# Restore current instance
current_bd_instance $oldCurInst
}

# Procedure to create entire design; Provide argument to make
# procedure reusable. If parentCell is "", will use root.
proc create_root_design { parentCell } {

variable script_folder
variable design_name

if { $parentCell eq "" } {
set parentCell [get_bd_cells /]
}

# Get object for parentCell
set parentObj [get_bd_cells $parentCell]
if { $parentObj == "" } {
catch {common::send_msg_id "BD_TCL-100" "ERROR" "Unable to find parent cell !"}
return
}

# Make sure parentObj is hier blk
set parentType [get_property TYPE $parentObj]
if { $parentType ne "hier" } {
catch {common::send_msg_id "BD_TCL-101" "ERROR" "Parent has TYPE = . Expected to be ."}
return
}

# Save current instance; Restore later
set oldCurInst [current_bd_instance .]

# Set parent object as current
current_bd_instance $parentObj

# Create interface ports
set user_si570_sysclk [ create_bd_intf_port -mode Slave -vlnv xilinx.com:interface:diff_clock_rtl:1.0 user_si570_sysclk ]
set_property -dict [ list /
CONFIG.FREQ_HZ {300000000} /
] $user_si570_sysclk

# Create ports
set reset [ create_bd_port -dir I -type rst reset ]
set_property -dict [ list /
CONFIG.POLARITY {ACTIVE_HIGH} /
] $reset

# Create instance: axi_bram_ctrl_0, and set properties
set axi_bram_ctrl_0 [ create_bd_cell -type ip -vlnv xilinx.com:ip:axi_bram_ctrl axi_bram_ctrl_0 ]

# Create instance: axi_bram_ctrl_0_bram, and set properties
set axi_bram_ctrl_0_bram [ create_bd_cell -type ip -vlnv xilinx.com:ip:blk_mem_gen axi_bram_ctrl_0_bram ]
set_property -dict [ list /
CONFIG.Memory_Type {True_Dual_Port_RAM} /
] $axi_bram_ctrl_0_bram

# Create instance: axi_timer_0, and set properties
set axi_timer_0 [ create_bd_cell -type ip -vlnv xilinx.com:ip:axi_timer axi_timer_0 ]

# Create instance: clk_wiz_1, and set properties
set clk_wiz_1 [ create_bd_cell -type ip -vlnv xilinx.com:ip:clk_wiz clk_wiz_1 ]
set_property -dict [ list /
CONFIG.CLK_IN1_BOARD_INTERFACE {user_si570_sysclk} /
CONFIG.PRIM_SOURCE {Differential_clock_capable_pin} /
CONFIG.RESET_BOARD_INTERFACE {reset} /
CONFIG.USE_BOARD_FLOW {true} /
] $clk_wiz_1

# Create instance: mdm_1, and set properties
set mdm_1 [ create_bd_cell -type ip -vlnv xilinx.com:ip:mdm mdm_1 ]
set_property -dict [ list /
CONFIG.C_ADDR_SIZE {32} /
CONFIG.C_M_AXI_ADDR_WIDTH {32} /
CONFIG.C_USE_UART {1} /
] $mdm_1

# Create instance: microblaze_0, and set properties
set microblaze_0 [ create_bd_cell -type ip -vlnv xilinx.com:ip:microblaze microblaze_0 ]
set_property -dict [ list /
CONFIG.C_DEBUG_ENABLED {1} /
CONFIG.C_D_AXI {1} /
CONFIG.C_D_LMB {1} /
CONFIG.C_I_LMB {1} /
CONFIG.G_TEMPLATE_LIST {10} /
] $microblaze_0

# Create instance: microblaze_0_axi_intc, and set properties
set microblaze_0_axi_intc [ create_bd_cell -type ip -vlnv xilinx.com:ip:axi_intc microblaze_0_axi_intc ]
set_property -dict [ list /
CONFIG.C_HAS_FAST {1} /
] $microblaze_0_axi_intc

# Create instance: microblaze_0_axi_periph, and set properties
set microblaze_0_axi_periph [ create_bd_cell -type ip -vlnv xilinx.com:ip:axi_interconnect microblaze_0_axi_periph ]
set_property -dict [ list /
CONFIG.NUM_MI {3} /
CONFIG.NUM_SI {1} /
] $microblaze_0_axi_periph

# Create instance: microblaze_0_axi_periph1, and set properties
set microblaze_0_axi_periph1 [ create_bd_cell -type ip -vlnv xilinx.com:ip:axi_interconnect microblaze_0_axi_periph1 ]
set_property -dict [ list /
CONFIG.NUM_MI {1} /
CONFIG.NUM_SI {2} /
] $microblaze_0_axi_periph1

# Create instance: microblaze_0_local_memory
create_hier_cell_microblaze_0_local_memory [current_bd_instance .] microblaze_0_local_memory

# Create instance: microblaze_0_xlconcat, and set properties
set microblaze_0_xlconcat [ create_bd_cell -type ip -vlnv xilinx.com:ip:xlconcat microblaze_0_xlconcat ]

# Create instance: rst_clk_wiz_1_100M, and set properties
set rst_clk_wiz_1_100M [ create_bd_cell -type ip -vlnv xilinx.com:ip:proc_sys_reset rst_clk_wiz_1_100M ]
set_property -dict [ list /
CONFIG.RESET_BOARD_INTERFACE {reset} /
CONFIG.USE_BOARD_FLOW {true} /
] $rst_clk_wiz_1_100M

# Create interface connections
connect_bd_intf_net -intf_net axi_bram_ctrl_0_BRAM_PORTA [get_bd_intf_pins axi_bram_ctrl_0/BRAM_PORTA] [get_bd_intf_pins axi_bram_ctrl_0_bram/BRAM_PORTA]
connect_bd_intf_net -intf_net axi_bram_ctrl_0_BRAM_PORTB [get_bd_intf_pins axi_bram_ctrl_0/BRAM_PORTB] [get_bd_intf_pins axi_bram_ctrl_0_bram/BRAM_PORTB]
connect_bd_intf_net -intf_net microblaze_0_M_AXI_DC [get_bd_intf_pins microblaze_0/M_AXI_DC] [get_bd_intf_pins microblaze_0_axi_periph1/S00_AXI]
connect_bd_intf_net -intf_net microblaze_0_M_AXI_IC [get_bd_intf_pins microblaze_0/M_AXI_IC] [get_bd_intf_pins microblaze_0_axi_periph1/S01_AXI]
connect_bd_intf_net -intf_net microblaze_0_axi_dp [get_bd_intf_pins microblaze_0/M_AXI_DP] [get_bd_intf_pins microblaze_0_axi_periph/S00_AXI]
connect_bd_intf_net -intf_net microblaze_0_axi_periph1_M00_AXI [get_bd_intf_pins axi_bram_ctrl_0/S_AXI] [get_bd_intf_pins microblaze_0_axi_periph1/M00_AXI]
connect_bd_intf_net -intf_net microblaze_0_axi_periph_M02_AXI [get_bd_intf_pins axi_timer_0/S_AXI] [get_bd_intf_pins microblaze_0_axi_periph/M02_AXI]
connect_bd_intf_net -intf_net microblaze_0_debug [get_bd_intf_pins mdm_1/MBDEBUG_0] [get_bd_intf_pins microblaze_0/DEBUG]
connect_bd_intf_net -intf_net microblaze_0_dlmb_1 [get_bd_intf_pins microblaze_0/DLMB] [get_bd_intf_pins microblaze_0_local_memory/DLMB]
connect_bd_intf_net -intf_net microblaze_0_ilmb_1 [get_bd_intf_pins microblaze_0/ILMB] [get_bd_intf_pins microblaze_0_local_memory/ILMB]
connect_bd_intf_net -intf_net microblaze_0_intc_axi [get_bd_intf_pins microblaze_0_axi_intc/s_axi] [get_bd_intf_pins microblaze_0_axi_periph/M00_AXI]
connect_bd_intf_net -intf_net microblaze_0_interrupt [get_bd_intf_pins microblaze_0/INTERRUPT] [get_bd_intf_pins microblaze_0_axi_intc/interrupt]
connect_bd_intf_net -intf_net microblaze_0_mdm_axi [get_bd_intf_pins mdm_1/S_AXI] [get_bd_intf_pins microblaze_0_axi_periph/M01_AXI]
connect_bd_intf_net -intf_net user_si570_sysclk_1 [get_bd_intf_ports user_si570_sysclk] [get_bd_intf_pins clk_wiz_1/CLK_IN1_D]

# Create port connections
connect_bd_net -net ARESETN_1 [get_bd_pins microblaze_0_axi_periph/ARESETN] [get_bd_pins microblaze_0_axi_periph1/ARESETN] [get_bd_pins rst_clk_wiz_1_100M/interconnect_aresetn]
connect_bd_net -net axi_timer_0_interrupt [get_bd_pins axi_timer_0/interrupt] [get_bd_pins microblaze_0_xlconcat/In0]
connect_bd_net -net clk_wiz_1_locked [get_bd_pins clk_wiz_1/locked] [get_bd_pins rst_clk_wiz_1_100M/dcm_locked]
connect_bd_net -net mdm_1_debug_sys_rst [get_bd_pins mdm_1/Debug_SYS_Rst] [get_bd_pins rst_clk_wiz_1_100M/mb_debug_sys_rst]
connect_bd_net -net microblaze_0_Clk [get_bd_pins axi_bram_ctrl_0/s_axi_aclk] [get_bd_pins axi_timer_0/s_axi_aclk] [get_bd_pins clk_wiz_1/clk_out1] [get_bd_pins mdm_1/S_AXI_ACLK] [get_bd_pins microblaze_0/Clk] [get_bd_pins microblaze_0_axi_intc/processor_clk] [get_bd_pins microblaze_0_axi_intc/s_axi_aclk] [get_bd_pins microblaze_0_axi_periph/ACLK] [get_bd_pins microblaze_0_axi_periph/M00_ACLK] [get_bd_pins microblaze_0_axi_periph/M01_ACLK] [get_bd_pins microblaze_0_axi_periph/M02_ACLK] [get_bd_pins microblaze_0_axi_periph/S00_ACLK] [get_bd_pins microblaze_0_axi_periph1/ACLK] [get_bd_pins microblaze_0_axi_periph1/M00_ACLK] [get_bd_pins microblaze_0_axi_periph1/S00_ACLK] [get_bd_pins microblaze_0_axi_periph1/S01_ACLK] [get_bd_pins microblaze_0_local_memory/LMB_Clk] [get_bd_pins rst_clk_wiz_1_100M/slowest_sync_clk]
connect_bd_net -net microblaze_0_intr [get_bd_pins microblaze_0_axi_intc/intr] [get_bd_pins microblaze_0_xlconcat/dout]
connect_bd_net -net reset_1 [get_bd_ports reset] [get_bd_pins clk_wiz_1/reset] [get_bd_pins rst_clk_wiz_1_100M/ext_reset_in]
connect_bd_net -net rst_clk_wiz_1_100M_bus_struct_reset [get_bd_pins microblaze_0_local_memory/SYS_Rst] [get_bd_pins rst_clk_wiz_1_100M/bus_struct_reset]
connect_bd_net -net rst_clk_wiz_1_100M_mb_reset [get_bd_pins microblaze_0/Reset] [get_bd_pins microblaze_0_axi_intc/processor_rst] [get_bd_pins rst_clk_wiz_1_100M/mb_reset]
connect_bd_net -net rst_clk_wiz_1_100M_peripheral_aresetn [get_bd_pins axi_bram_ctrl_0/s_axi_aresetn] [get_bd_pins axi_timer_0/s_axi_aresetn] [get_bd_pins mdm_1/S_AXI_ARESETN] [get_bd_pins microblaze_0_axi_intc/s_axi_aresetn] [get_bd_pins microblaze_0_axi_periph/M00_ARESETN] [get_bd_pins microblaze_0_axi_periph/M01_ARESETN] [get_bd_pins microblaze_0_axi_periph/M02_ARESETN] [get_bd_pins microblaze_0_axi_periph/S00_ARESETN] [get_bd_pins microblaze_0_axi_periph1/M00_ARESETN] [get_bd_pins microblaze_0_axi_periph1/S00_ARESETN] [get_bd_pins microblaze_0_axi_periph1/S01_ARESETN] [get_bd_pins rst_clk_wiz_1_100M/peripheral_aresetn]

# Create address segments
create_bd_addr_seg -range 0x00080000 -offset 0x80000000 [get_bd_addr_spaces microblaze_0/Data] [get_bd_addr_segs axi_bram_ctrl_0/S_AXI/Mem0] SEG_axi_bram_ctrl_0_Mem0
create_bd_addr_seg -range 0x00080000 -offset 0x80000000 [get_bd_addr_spaces microblaze_0/Instruction] [get_bd_addr_segs axi_bram_ctrl_0/S_AXI/Mem0] SEG_axi_bram_ctrl_0_Mem0
create_bd_addr_seg -range 0x00010000 -offset 0x41C00000 [get_bd_addr_spaces microblaze_0/Data] [get_bd_addr_segs axi_timer_0/S_AXI/Reg] SEG_axi_timer_0_Reg
create_bd_addr_seg -range 0x00010000 -offset 0x00000000 [get_bd_addr_spaces microblaze_0/Data] [get_bd_addr_segs microblaze_0_local_memory/dlmb_bram_if_cntlr/SLMB/Mem] SEG_dlmb_bram_if_cntlr_Mem
create_bd_addr_seg -range 0x00010000 -offset 0x00000000 [get_bd_addr_spaces microblaze_0/Instruction] [get_bd_addr_segs microblaze_0_local_memory/ilmb_bram_if_cntlr/SLMB/Mem] SEG_ilmb_bram_if_cntlr_Mem
create_bd_addr_seg -range 0x00001000 -offset 0x41400000 [get_bd_addr_spaces microblaze_0/Data] [get_bd_addr_segs mdm_1/S_AXI/Reg] SEG_mdm_1_Reg
create_bd_addr_seg -range 0x00010000 -offset 0x41200000 [get_bd_addr_spaces microblaze_0/Data] [get_bd_addr_segs microblaze_0_axi_intc/S_AXI/Reg] SEG_microblaze_0_axi_intc_Reg

# Restore current instance
current_bd_instance $oldCurInst

validate_bd_design
save_bd_design
}
# End of create_root_design()

##################################################################
# MAIN FLOW
##################################################################

create_root_design ""

软件测试过程

xsct% connect
attempting to launch hw_server

****** Xilinx hw_server v2018.3
**** Build date : Dec 7 2018-00:40:27
** Copyright 1986-2018 Xilinx, Inc. All Rights Reserved.

INFO: hw_server application started
INFO: Use Ctrl-C to exit hw_server application

****** Xilinx hw_server v2018.3

**** Build date : Dec 7 2018-00:40:27

** Copyright 1986-2018 Xilinx, Inc. All Rights Reserved.

INFO: hw_server application started

INFO: Use Ctrl-C to exit hw_server application

INFO: To connect to this hw_server instance use url: TCP:127.0.0.1:3121

target
1* PS TAP
2 PMU
3 PL
13 MicroBlaze Debug Module at USER2
14 MicroBlaze #0 (Running)
xsct% target 14
xsct% rst -proc
Info: MicroBlaze #0 (target 14) Stopped at 0x10 (Stop)
xsct% target
1 PS TAP
2 PMU
3 PL
13 MicroBlaze Debug Module at USER2
14* MicroBlaze #0 (Stop)
xsct% rrd
r0: 00000000 r1: 00000000 r2: 00000000 r3: 00000000 r4: 00000000
r5: 00000000 r6: 00000000 r7: 00000000 r8: 00000000 r9: 00000000
r10: 00000000 r11: 00000000 r12: 00000000 r13: 00000000 r14: 00000000
r15: 00000000 r16: 00000000 r17: 00000000 r18: 00000000 r19: 00000000
r20: 00000000 r21: 00000000 r22: 00000000 r23: 00000000 r24: 00000000
r25: 00000000 r26: 00000000 r27: 00000000 r28: 00000000 r29: 00000000
r30: 00000000 r31: 00000000 pc: 00000010 msr: 00000400 ear: 00000000
esr: 00000000 fsr: 00000000 btr: 00000000 pvr mmu
dcr: 00000009 dsr: 21010001

xsct% mrd 0x80000000 0x10
80000000: 00000000
80000004: 00000000
80000008: 00000000
8000000C: 00000000
80000010: 00000000
80000014: 00000000
80000018: 00000000
8000001C: 00000000
80000020: 00000000
80000024: 00000000
80000028: 00000000
8000002C: 00000000
80000030: 00000000
80000034: 00000000
80000038: 00000000
8000003C: 00000000

xsct% mwr 0x80000000 0x12345678
xsct% mrd 0x80000000 0x10
80000000: 12345678
80000004: 00000000
80000008: 00000000
8000000C: 00000000
80000010: 00000000
80000014: 00000000
80000018: 00000000
8000001C: 00000000
80000020: 00000000
80000024: 00000000
80000028: 00000000
8000002C: 00000000
80000030: 00000000
80000034: 00000000
80000038: 00000000
8000003C: 00000000

编辑：hfy
