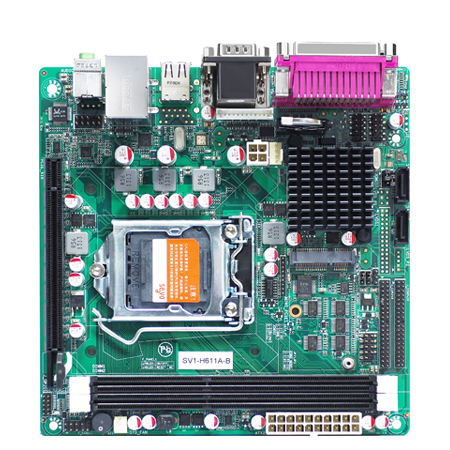

Intel 2代、3代Core i3/i5/i7处理器（LGA1155）, 10*COM, 1*LAN, 1*PCI-E, 1*Mini-PCIe
支持Intel 2代、3代Core i3/i5/i7处理器（LGA1155）
采用Intel H61芯片组
提供10*COM、8*USB, 1*千兆LAN
提供1*VGA, 1*HDMI, 支持双屏异显
提供1*PCI-E 16X, 1*Mini-PCIe
规格
| General | |
| CPU | Intel® Pentium®/ Celeron®/ 2nd and 3rd Generation CoreTM i3/i5/i7 CPU, LGA1155 |
| Chipset | Intel® H61 Chipset, TDP 6.1W |
| Memory | Up to 16 GB DDR3 1333/1066 MHz, 2*DIMM |
| Storage | 2*SATA 2.0 |
| Expansion Interface | 1*PCI-E 16X, 1*Mini-PCIe（Wifi/3G/4G Supported） |
| BIOS | AMI UEFI BIOS |
| System | Windows XP/7/8/10, Linux |
| I/O Interface | |
| Serial Port | 10*RS232（COM3 RS485 optional） |
| USB | 8*USB 2.0（4*on rear I/O, 4*header） |
| Ethernet | 1*Realtek® PCI-E LAN for 1000Mbps |
| Audio | Realtek® ALC662 5.1 channel HDA Codec, supports MIC/Line-outPorts |
| PS/2 | 1*PS/2 (Keyboard and Mouse Supported) |
| Parallel Port | 1* LPT |
| GPIO | 8 programmable GPIO |
| Feature Interface | Null |
| Display | |
| Display Interface |
1*VGA: max resolution up to 1920*1200@60Hz 1*HDMI: max resolution up to 1920*1200@60Hz |
| Multiple Display | Dual |
| Mechanical & Environment | |
| Dimension | Mini-ITX, 170*170mm |
| Power Input | ATX PSU |
| Temperature | Operation: 0℃~60℃, Storage: -25℃~75℃ |
| Relative Humidity | Operation: 10%~90%, Storage: 5%~95%, non-condensing |
