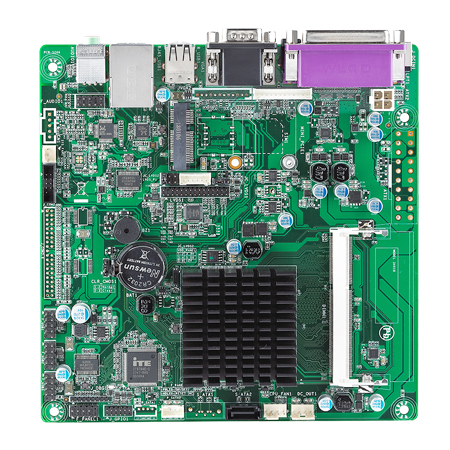

信步科技SV-1900D嵌入式主板介绍

时间：2019-09-30 10:19

人气：

作者：admin

导读：Support Intel Bay Trail J1900 CPU2*COM, 10*USB, 1*1000 Mbps LANSupport dual display of VGA and LVDSSupport Cash Drawer Control port (RJ11)Support DC 12V规格...

Intel Bay Trail J1900 CPU, 2*COM, 10*USB, 1*RJ11 Cash Drawer Control port

Support Intel Bay Trail J1900 CPU
2*COM, 10*USB, 1*1000 Mbps LAN
Support dual display of VGA and LVDS
Support Cash Drawer Control port (RJ11)
Support DC 12V

规格

General
CPU	Intel^®Celeron^®J1900 CPU, Quad-core, up to 2.42GHz, TDP 10W
Chipset	Null
Memory	DDR3L-1333, 1*SO-DIMM, up to 8 GB
Storage	2*SATA 2.0
Expansion Interface	1Mini-PCIe (1mSATA)
BIOS	AMI UEFI BIOS
System	Windows7/8/10, Linux

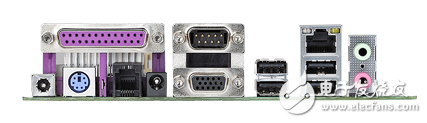

I/O Interface
Serial Port	2*RS232
USB	10*USB 2.0
Ethernet	1*Realtek^®1Gbps PCIe Ethernet Controller
Audio	Realtek^®ALC662 5.1 channel HDA Codec, supports MIC/Line-out Ports
PS/2	1*PS/2
Parallel Port	1*LPT Port
GPIO	8 programmable GPIO
Feature Interface	1*Cash Drawer Control Port, RJ11
Display
Display Interface	1VGA: max resolution up to 25601600@60Hz 1LVDS: Dual Channel 24 bit, max resolution up to 19201200@60Hz
Multiple Display	Dual
Mechanical & Environment
Dimension	Mini-ITX, 170*170mm
Power Input	DC 12V
Temperature	Operation: 0℃~60℃, Storage: -25℃~75℃
Relative Humidity	Operation: 10%~90%, Storage: 5%~95%, non-condensing
