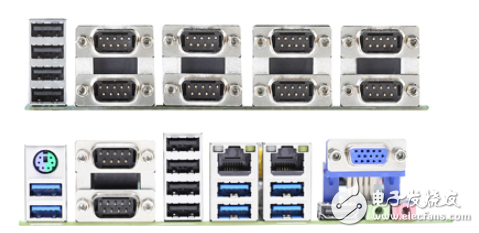

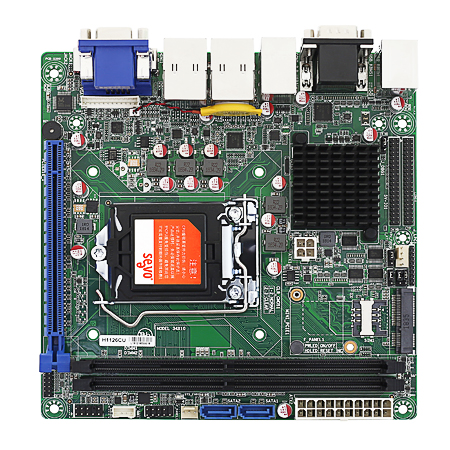

Intel 6/7代Core i3/i5/i7处理器(LGA1151), 双层I/O设计, 可扩展至18*COM, 18*USB
| General | |
| CPU | Intel® Pentium®/ Celeron®/ 6th and 7th Generation CoreTM i3/i5/i7 CPU, LGA1151 |
| Chipset | Intel® H110 Chipset, TDP 6W |
| Memory | Up to 32 GB DDR4 2133 MHz, 2*DIMM |
| Storage | 2*SATA 3.0, 1*mSATA |
| Expansion Interface | 1*PCI-E 16X, 2*Mini-PCIe (1*mSATA Supported, 1*Wifi/3G/4G Supported) |
| BIOS | AMI UEFI BIOS |
| System | Windows7/8/10, Linux |
| I/O Interface | |
| Serial Port | 6*RS232 (Up to 18*RS232 with SV-M5-CU) |
| USB | 6*USB 3.0, 4*USB 2.0 (Up to 18*USB with SV-M5-CU) |
| Ethernet | 2*Realtek® PCI-E LAN for 1000Mbps |
| Audio | Realtek® ALC662 5.1 channel HDA Codec, supports MIC/Line-out Ports |
| PS/2 | 1*PS/2 |
| Parallel Port | Null |
| GPIO | 8 programmable GPIO |
| Feature Interface | Null |
| Display | |
| Display Interface |
1*VGA: max resolution up to 1920*1200@60Hz |
| Multiple Display | Dual |
| Mechanical & Environment | |
| Dimension | Mini-ITX, 170*170mm |
| Power Input | ATX PSU |
| Temperature | Operation: 0℃~60℃, Storage: -25℃~75℃ |
| Relative Humidity | Operation: 10%~90%, Storage: 5%~95%, non-condensing |
