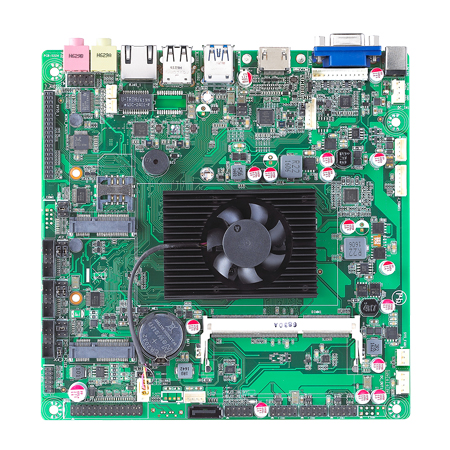

信步科技SV1a-71014P嵌入式主板介绍

时间：2019-10-17 10:58

人气：

作者：admin

导读：Intel® Kaby Lake-U 7th Gen Core i3-7100U CPUSupports triple display of VGA, HDMI and LVDS/eDP4*COM, 9*USB, 1*1000 Mbps LAN2*Mini-PCIe (Supports 1*mSATA, 1*Wifi+3G/4G)Supports DC 12V InputThin Mini-ITX (thickness≤17mm)...

Intel® Kaby Lake-U 7th Gen Core i3-7100U CPU, Triple display of VGA, HDMI and LVDS/eDP ,1*1000 Mbps LAN, 2*Mini-PCIe

Intel® Kaby Lake-U 7th Gen Core i3-7100U CPU
Supports triple display of VGA, HDMI and LVDS/eDP
4*COM, 9*USB, 1*1000 Mbps LAN
2*Mini-PCIe (Supports 1*mSATA, 1*Wifi+3G/4G)
Supports DC 12V Input
Thin Mini-ITX (thickness≤17mm)

规格

General
CPU	Intel^®Kaby Lake-U Core^TM i3-7100U CPU, Dual-core, 2.4GHz,TDP 15W
Chipset	Null
Memory	Up to 8 GB DDR3L 1866/1600 MHz, 1*SO-DIMM
Storage	2SATA 3.0, 1mSATA
Expansion Interface	2Mini-PCIe (1mSATA Supported, 1*Wifi/3G/4G Supported)
BIOS	AMI UEFI BIOS
System	Windows 7/8/10, Linux
I/O Interface
Serial Port	4*RS232 (COM3 TTL optional)
USB	2USB 3.0, 7USB 2.0 (4on rear I/O, 5header)
Ethernet	1*Realtek^® PCI-E LAN for 1000Mbps
Audio	Realtek^® ALC662 5.1 channelHDA Codec, supports MIC/Line-out Ports 1*Amplifier
PS/2	1*PS/2 (Keyboard and Mouse Supported)
Parallel Port	1*LPT
GPIO	8 programmable GPIO
Feature Interface	1*Cash Drawer wafer
Display
Display Interface	1VGA: max resolution up to 19201200 1HDMI: max resolution up to 19201200 1LVDS/eDP: DualChannel 24bit LVDS, max resolution up to 19201200; eDP max resolution up to 1920*1080
Multiple Display	Triple
Mechanical & Environment
Dimension	Mini-ITX, 170*170mm
Power Input	DC 12V
Temperature	Operation: 0℃~60℃, Storage: -25℃~75℃
Relative Humidity	Operation: 10%~90%, Storage: 5%~95%, non-condensing
