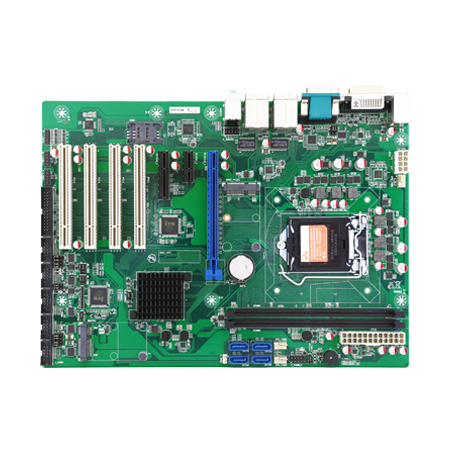

信步科技SV-KBL-S5嵌入式主板介绍

时间：2019-10-22 09:31

人气：

作者：admin

导读：Supports Intel® Kaby Lake 7th Gen Core i3/i5/i7 CPU (LGA1151) with Intel H270/B250 chipset6*COM, 10*USB, 2*Intel Ethernet Controller i211/i210Supports dual display of VGA, HDMI and DVI1*PCI-E 16X, 1*PCI-E 4X, 1*PCI-E 1X, 4*PCI2*Mini-PCIe (S...

Intel® Kaby Lake 7th Gen Core i3/i5/i7 CPU (LGA1151) with H270/B250, 6*COM, 3*PCI-E, 4*PCI, 2*Mini-PCIe, 2*Intel Ethernet Controller i211/i210

Supports Intel® Kaby Lake 7th Gen Core i3/i5/i7 CPU (LGA1151) with Intel H270/B250 chipset
6*COM, 10*USB, 2*Intel Ethernet Controller i211/i210
Supports dual display of VGA, HDMI and DVI
1*PCI-E 16X, 1*PCI-E 4X, 1*PCI-E 1X, 4*PCI
2*Mini-PCIe (Supports 1*mSATA, 1*Wifi+3G/4G)

规格

General
CPU	Intel^® Kaby Lake Pentium^®/ Celeron^®/ 7^th Generation Core^TM i3/i5/i7 CPU, LGA1151
Chipset	Intel^® H270/B250 Chipset, TDP 6W
Memory	Up to 32 GB DDR4 2133/1866 MHz, 2*DIMM
Storage	4*SATA 3.0, 1mSATA
Expansion Interface	1PCI-E 16X, 1PCI-E 4X, 1PCI-E 1X,4PCI, 2Mini-PCIe (1mSATASupported, 1*Wifi/3G/4G Supported)
BIOS	AMI UEFI BIOS
System	Windows 7/8/10, Linux

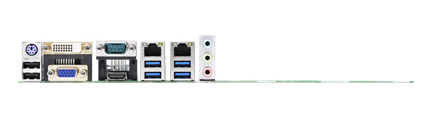

I/O Interface
Serial Port	6*RS232 (COM3, COM4 RS485 optional)
USB	4USB 3.0, 6USB 2.0
Ethernet	2*Intel^® Ethernet Controller i211/i210 for 1000Mbps
Audio	Realtek^® ALC662 5.1 channel HDA Codec, supports MIC/Line-out/Line-inPorts
PS/2	1*PS/2
Parallel Port	1* LPT
GPIO	8 programmable GPIO
Feature Interface	Null
Display
Display Interface	1VGA: max resolution up to 19201200 1DVI:max resolution up to 19201200 1HDMI: max resolutionup to 40962160
Multiple Display	Dual
Mechanical & Environment
Dimension	ATX, 305*217mm
Power Input	ATX PSU
Temperature	Operation: 0℃~60℃, Storage: -25℃~75℃
Relative Humidity	Operation: 10%~90%, Storage: 5%~95%, non-condensing
