Qualcomm 基于 QCS6490 的 Rubik Pi AI SBC 支持 Android、

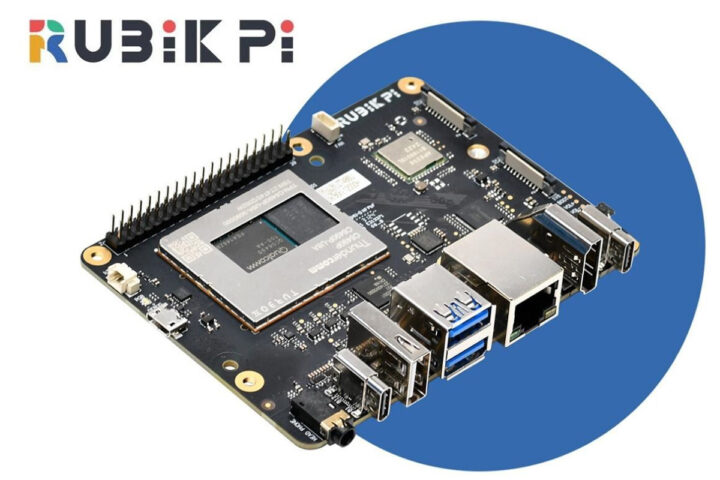

Thundercomm 最近推出了围绕 Qualcomm QCS6490 SoC 构建的 Rubik Pi AI SBC，该 SoC 具有 12.5 TOPS AI 加速器。SBC 采用“PI-CO ITX”外形尺寸，结合了 Pico-ITX 标准和 Raspberry Pi SBC 上的 40 针 GPIO 接头。

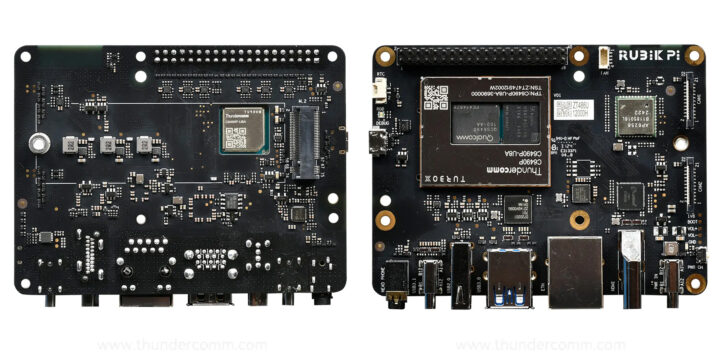

SBC 带有一组标准接口，包括 USB、HDMI 输出、MIPI-CSI 摄像头支持、以太网、Wi-Fi 5、蓝牙 5.2 等等。此外，SBC 还具有用于 GPIO 的 40 引脚接头、用于调试的 UART、音频输出和 RTC 电池支持。该公司提到，这是第一个使用高通 AI 平台的基于 Pi 的系统，因此它支持 Raspberry Pi HAT/HAT+ 扩展板，使其适用于各种 AI、物联网和边缘计算项目。

Rubik Pi AI SBC specification

SoC –Qualcomm QCS6490

CPU – Octa-core Kryo 670 with 1x Gold Plus core (Cortex-A78) @ 2.7 GHz, 3x Gold cores (Cortex-A78) @ 2.4 GHz, 4x Silver cores (Cortex-A55) @ up to 1.9 GHz

GPU – Adreno 643L GPU @ 812 MHz with support for Open GL ES 3.2, Open CL 2.0, Vulkan 1.x, DX FL 12

DSP – Hexagon DSP with dual HVX and 4K HMX

VPU – Adreno 633 VPU up to 4K60 decode for H.264/H.265/VP9, Up to 4K30 encode for H.264/H.265; Support for HDR10 and HDR10+ playback

Spectra ISP – 64 MP / 36 + 22 MP / 3×22 MP at 30fps ZSL; 192 MP non-ZSL

AI – 6th gen Qualcomm AI Engine that combines Compute Hexagon DSP with dual Hexagon Vector, eXtensions (HVX), Hexagon Co-processor (Hexagon CP) 2.0 and Hexagon Tensor accelerator forup to 12 TOPS of AI performance

System Memory – 8GB LPDDR5

Storage

128GB UFS flash (µMCP: i.e. the RAM and UFS are in the same chip)

M.2 M-Key socket for SSD

Video Output

HDMI 1.4 (4K @ 30FPS)

DisplayPort over USB Type-C (4K @ 60FPS)

Camera Inputs – 2 x MIPI-CSI D-PHY (4-lane)

Audio

3.5mm headphone jack

HDMI audio out

Connectivity

Gigabit Ethernet RJ45 port

Wi-Fi 5 supports 802.11 ac/a/b/g/n

Bluetooth 5.2

USB

1 x USB Type-C port (USB 3.1 Gen 1)

2 x USB Type-A ports (USB 3.0)

1 x USB Type-A port (USB 2.0 Host/Device)

Expansion

M.2 M Key Connector for SSD

40-pin Raspberry Pi compatible header with 28x GPIO, 1x I2S, 1x PWM, 2x I2C, 3x I2C or SPI or UART

Misc

Power on button

RGB LED

RTC battery connector

PWM fan connector

Power supply – 12V/3A input over USB Type-C PD

Dimensions – 100mm x 75mm (~Pico-ITX and PI-CO ITX form factors)
