HMC414MS8G功率放大器

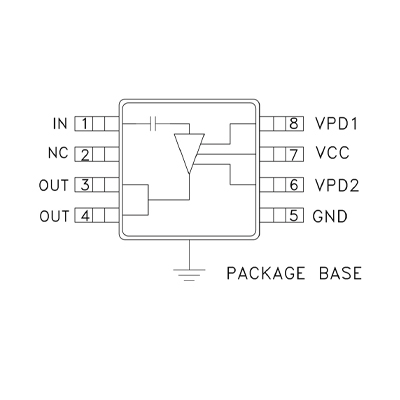

HMC414MS8G(E)是一款高效率GaAs InGaP异质结双极性晶体管(HBT) MMIC功率放大器，工作频率范围为2.2至2.8 GHz。 该放大器采用低成本、表面贴装8引脚封装，带有裸露基座以改善RF和散热性能。 它采用极少的外部元件提供20 dB增益，饱和功率为+30 dBm（32% PAE时），电源电压为+5V。 该放大器还可采用3.6V电源工作。 Vpd可用于全省电模式或RF输出功率/电流控制。

增益： 20 dB
饱和功率： +30 dBm
32% PAE
电源电压： +2.75V至+5V
省电功能
外部器件数量少

应用

蓝牙
MMDS
