STM32MP25x开发板Bring Up培训课程(中)

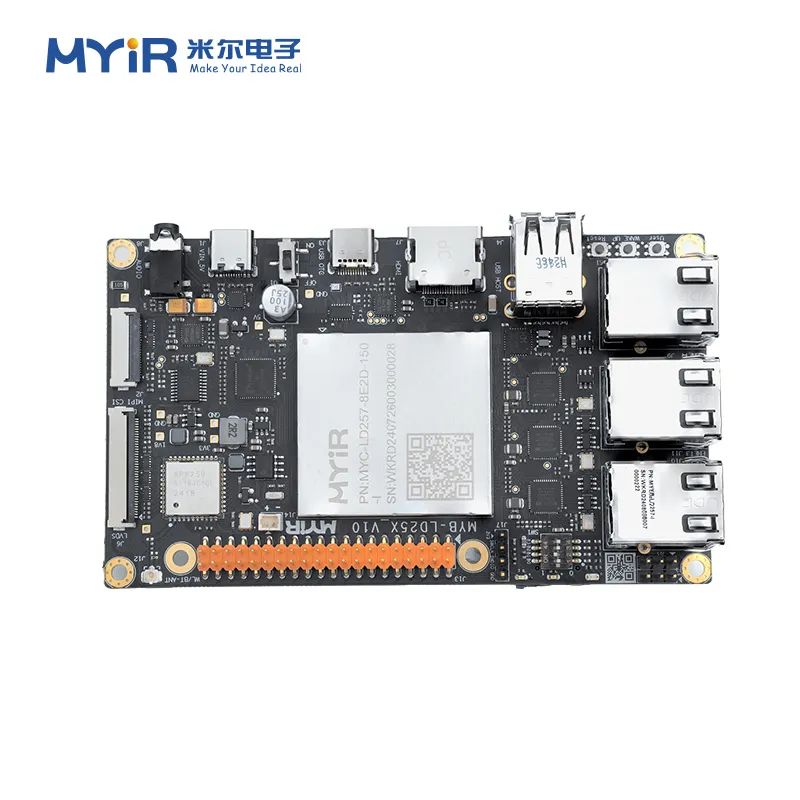

米尔基于STM32MP257核心板及开发板

2.修改设备树

查看生成的Bring up工程空文件的设备树，CA35的设备树文件夹，其他的是M33核的工程资料。

我们可以看到生成的设备树文件如下：

myir@myir-vm:/mnt/hgfs/ShareWorkspace/stm32mp25x-bringup/Bringup/CA35/DeviceTree/Bringup$ tree -l.├── kernel│ ├── stm32mp257d-bringup-mx.dts│ └── stm32mp257d-bringup-mx-resmem.dtsi├── optee-os│ ├── stm32mp257d-bringup-mx.dts│ ├── stm32mp257d-bringup-mx-rcc.dtsi│ ├── stm32mp257d-bringup-mx-resmem.dtsi│ └── stm32mp257d-bringup-mx-rif.dtsi├── tf-a│ ├── stm32mp257d-bringup-mx.dts│ ├── stm32mp257d-bringup-mx-fw-config.dts│ ├── stm32mp257d-bringup-mx-rcc.dtsi│ └── stm32mp25-mx.dtsi└── u-boot├── stm32mp257d-bringup-mx.dts├── stm32mp257d-bringup-mx-resmem.dtsi└── stm32mp257d-bringup-mx-u-boot.dtsi4 directories, 13 files

以上的设备树已经配置了大部分内容的工程，但是工程是还无法全部启动，我们需要先把设备树同步到相应的BSP代码中。

stm32mp25x-BringUp-bsp.tar.gz已拷贝并解压到虚拟机：/home/myir。

注：windows和ubuntu之间目录共享

myir@myir-vm:~/stm32mp25x-BringUp-bsp$ tree -L 2.├── Bringup│ ├── Bringup.ioc│ ├── CA35│ ├── CM33│ ├── Common│ └── Drivers├── build├── FIP_artifacts│ ├── arm-trusted-firmware│ ├── fip│ ├── flash-all.sh│ ├── FlashLayout_emmc_stm32mp25x-bringup-mx.tsv│ ├── flash.sh│ ├── optee│ └── u-boot├── myir-st-optee│ ├── fiptool-stm32mp│ ├── Makefile.sdk│ ├── myir-st-external-dt│ ├── myir-st-optee│ └── README├── myir-st-tfa│ ├── fiptool-stm32mp│ ├── Makefile.sdk│ └── tf-a-myir├── myir-st-uboot│ ├── fiptool-stm32mp│ ├── Makefile.sdk│ └── u-boot-myir└── stm32mp-ddr-phy-A2022.11-r0├── README.HOW_TO.txt└── stm32mp-ddr-phy-A2022.1119 directories, 13 files

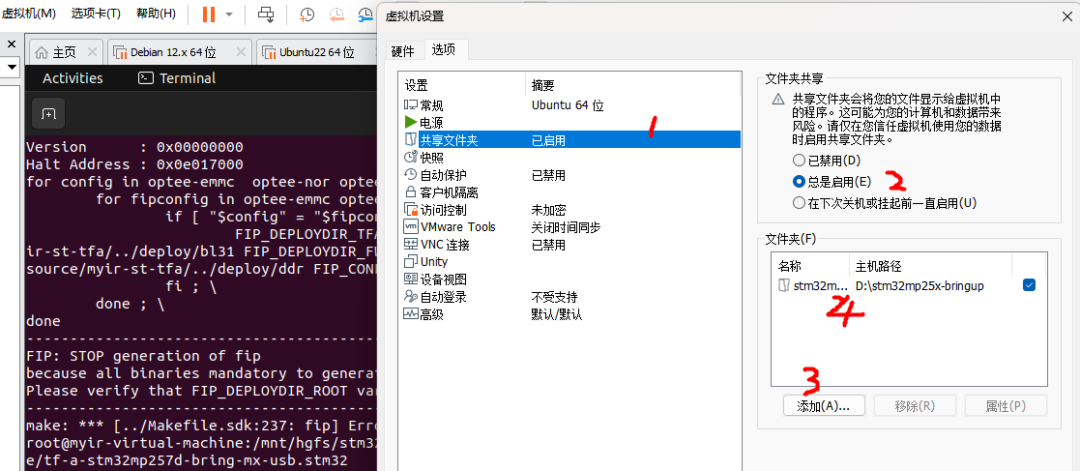

在“虚拟机设置”选项中设置完成后， 启动虚拟机执行如下命令进行挂载：

myir@myir-vm# sudo vmhgfs-fuse .host:/ /mnt/hgfs -o allow_other

sudo 密码为：123456

在虚拟机的/mnt/hgfs目录下已经成功挂载上共享的目录，如未挂载上，可以重新启动下虚拟机。

/home/myir/目录为我这边虚拟机的目录，实际目录以自己本机为准。

tf-a设备树软链接：

myir@myir-vm:/mnt/hgfs/ShareWorkspace# ln -s /mnt/hgfs/ShareWorkspace/Bringup/CA35/DeviceTree/bringup/tf-a/* /home/myir/stm32mp25x-BringUp-bsp/myir-st-tfa/tf-a-myir/fdts/

Optee-os设备树stm32mp257d-bringup-mx.dts和stm32mp257d-bringup-mx-rcc.dtsi软链接：

myir@myir-vm:/mnt/hgfs/ShareWorkspace# ln -s /mnt/hgfs/ShareWorkspace/Bringup/CA35/DeviceTree/bringup/optee-os/stm32mp257d-bringup-mx.dts /home/myir/stm32mp25x-BringUp-bsp/myir-st-optee/myir-st-optee/core/arch/arm/dts/root@myir-vm:/mnt/hgfs/ShareWorkspace# ln -s /mnt/hgfs/ShareWorkspace/Bringup/CA35/DeviceTree/bringup/optee-os/stm32mp257d-bringup-mx-rcc.dtsi /home/myir/stm32mp25x-BringUp-bsp/myir-st-optee/myir-st-optee/core/arch/arm/dts/

Optee-os设备树stm32mp257d-bringup-mx-resmem.dtsi和stm32mp257d-bringup-mx-rif.dtsi直接使用SourceCode压缩包Optee-os目录中的文件，可通过软链接或者拷贝的方式放到stm32mp25x-BringUp-bsp/myir-st-optee/myir-st-optee/core/arch/arm/dts/目录下。

Uboot设备树软链接：

myir@myir-vm:/mnt/hgfs/ShareWorkspace# ln -s /mnt/hgfs/ShareWorkspace/Bringup/CA35/DeviceTree/bringup/u-boot/* /home/myir/stm32mp25x-BringUp-bsp/myir-st-uboot/u-boot-myir/arch/arm/dts/

Kernel设备树软链接：

Note：STM32CubeMX的规则是先生成Kernel的dts，然后将生成的dts文件拷贝到u-boot目录下，也就是说u-boot的设备树stm32mp257d-bringup-mx.dts是从kernel目录拷贝过来的，所以在U-Boot阶段修改设备树，添加User code时，请同步修改kernel的设备树或者将修改好的设备树拷贝到Kernel目录，防止下次使用CubeMX生成设备树的时候，u-boot部分的修改被kernel未修改的设备树覆盖。

2.1.配置和编译TF-A

需要手动添加TF-A阶段的串口配置的user code.使用文本编辑工具打开生成的 打开 TF-A 设备树(Bringup\CA35\DeviceTree\Bringup\tf-a\stm32mp257d-bringup-mx.dts)

添加头文件

/*USERCODEBEGINincludes*/#include"stm32mp25xf.dtsi"#include"stm32mp25-pinctrl.dtsi"/*USERCODEENDincludes*/

在“USER CODE BEGIN root”位置添加“chosen”和“aliases”节点：

/* USER CODE BEGIN root */aliases {serial0 = &usart2;};chosen {stdout-path = "serial0:115200n8";};/* USER CODE END root */

增加PMIC配置

&i2c7{pinctrl-names = "default";pinctrl-0 = <&i2c7_pins_mx>;status = "okay";/* USER CODE BEGIN i2c7 */pmic2: stpmic@33 {compatible = "st,stpmic2";reg = <0x33>;status = "okay";regulators {compatible = "st,stpmic2-regulators";vddcpu: buck1 {regulator-name = "vddcpu";regulator-min-microvolt = <800000>;regulator-max-microvolt = <910000>;regulator-always-on;};vddcore: buck2 {regulator-name = "vddcore";regulator-min-microvolt = <820000>;regulator-max-microvolt = <820000>;regulator-always-on;};vddgpu: buck3 {regulator-name = "vddgpu";regulator-min-microvolt = <800000>;regulator-max-microvolt = <900000>;regulator-always-on;};vddio_pmic: buck4 {regulator-name = "vddio_pmic";regulator-min-microvolt = <3300000>;regulator-max-microvolt = <3300000>;regulator-always-on;};v1v8: buck5 {regulator-name = "v1v8";regulator-min-microvolt = <1800000>;regulator-max-microvolt = <1800000>;regulator-always-on;};vdd2_ddr: buck6 {regulator-name = "vdd2_ddr";regulator-min-microvolt = <1100000>;regulator-max-microvolt = <1100000>;};v3v3: buck7 {regulator-name = "v3v3";regulator-min-microvolt = <3300000>;regulator-max-microvolt = <3300000>;regulator-always-on;};vdda1v8_aon: ldo1 {regulator-name = "vdda1v8_aon";regulator-min-microvolt = <1800000>;regulator-max-microvolt = <1800000>;regulator-always-on;};vdd_emmc: ldo2 {regulator-name = "vdd_emmc";regulator-min-microvolt = <3300000>;regulator-max-microvolt = <3300000>;regulator-always-on;};vdd1_ddr: ldo3 {regulator-name = "vdd1_ddr";regulator-min-microvolt = <1800000>;regulator-max-microvolt = <1800000>;regulator-enable-ramp-delay = <1000>;};vdd3v3_usb: ldo4 {regulator-name = "vdd3v3_usb";regulator-min-microvolt = <3300000>;regulator-max-microvolt = <3300000>;regulator-always-on;};v5v_hdmi: ldo5 {regulator-name = "v5v_hdmi";regulator-min-microvolt = <2000000>;regulator-max-microvolt = <2000000>;};vdd_sdcard: ldo7 {regulator-name = "vdd_sdcard";regulator-min-microvolt = <3300000>;regulator-max-microvolt = <3300000>;regulator-always-on;};vddio_sdcard: ldo8 {regulator-name = "vddio_sdcard";st,regulator-bypass-microvolt = <3300000>;regulator-min-microvolt = <3300000>;regulator-max-microvolt = <3300000>;regulator-always-on;};};};/* USER CODE END i2c7 *
