N32L40XCL-STB模块评测—如何手工添加.pack包解决下

在用rtthread studio创建工程后，编译不报错。在下载时报pyocd找不到包的的错误，具体如下：

开始下载程序：2023-04-19 14:56:57
D:RT-ThreadStudio>cd /d D:RT-ThreadStudiorepoExtractDebugger_Support_PackagesRealThreadPyOCD�.1.6
D:RT-ThreadStudiorepoExtractDebugger_Support_PackagesRealThreadPyOCD�.1.6>pyocd.exe flash --target=N32L406CB --erase=auto --frequency=1000000 D:RT-ThreadStudioworkspaceN32L40_CANDebugrtthread.bin
0000672 W Overlapping memory regions in file ./packs/Keil.STM32L4xx_DFP.2.3.0-small.pack (STM32L412C8Tx); deleting outer region. Further warnings will be suppressed for this file. [cmsis_pack]
0000882 C Target type n32l406cb not recognized. Use 'pyocd list --targets' to see currently available target types. See for how to install additional target support. [__main__]
[2mTraceback (most recent call last):
File "pyocdboardboard.py", line 100, in __init__
KeyError: 'n32l406cb'
The above exception was the direct cause of the following exception:
Traceback (most recent call last):
File "pyocd__main__.py", line 161, in run
File "pyocdsubcommandsload_cmd.py", line 92, in invoke
File "pyocdcorehelpers.py", line 263, in session_with_chosen_probe
File "pyocdcoresession.py", line 213, in __init__
File "pyocdboardboard.py", line 106, in __init__
pyocd.core.exceptions.TargetSupportError: Target type n32l406cb not recognized. Use 'pyocd list --targets' to see currently available target types. See for how to install additional target support.[0m

执行完毕, 耗时：1510ms.

经查找查看报错信息，提示pyocd在下载时找不到.pack包。

解决方法

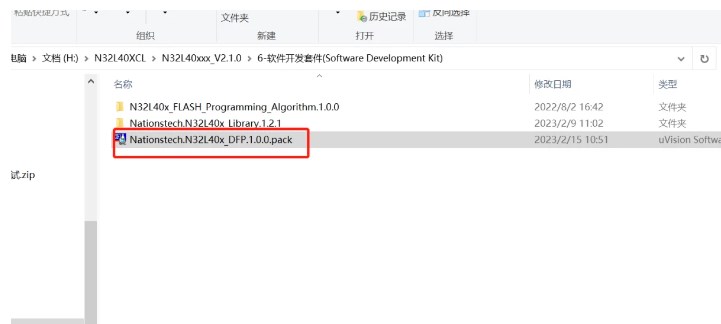

1、在国民技术的资料包的目录：H:N32L40XCLN32L40xxx_V2.1.06-软件开发套件(Software Development Kit)下面有.pack包：

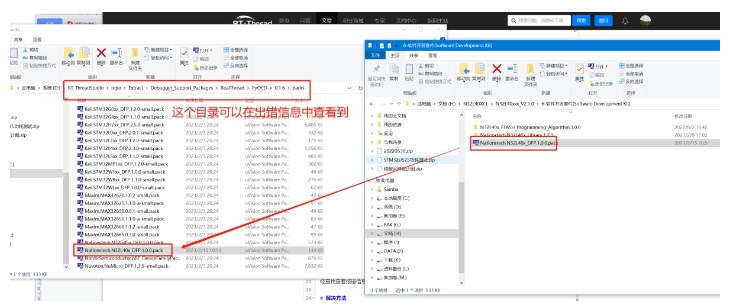

2、找到pyocd目录下面，把包拷贝到指定目录，如下图：

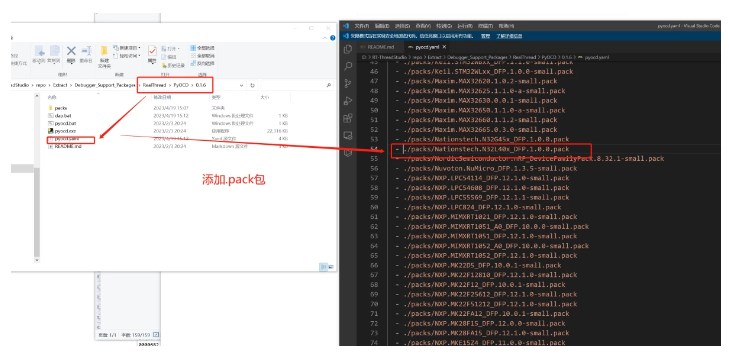

3、把包的信息添加到pyocd.yaml文件里面：

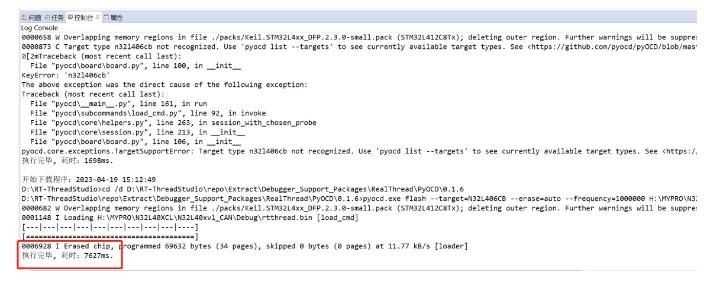

最后就可以顺利下载程序了

【总结】

rtthread在错误提示方面非常优秀，经查看错误日志，根据提示，很快就解决问题。
