信步科技SV4-Q3743嵌入式主板介绍

Intel Coffee Lake 8th Gen Core i3/i5/i7 CPU (LGA1151) with Q370, 2*Intel LAN, 6*COM, 8*USB 3.0, 2*MIOE0, 240mm*261mm

• Support Intel® 8th Gen Core i3/i5/i7 Processor (Coffee Lake) with Intel® Q370 Chipset
• 1*Intel I219-LM GbE and 1*Intel I211-AT GbE, supports Intel® vPro™ Technology
• 2*SO-DIMM, Up to 32 GB DDR4 2666 MHz
• 1*M.2 Key E 2230, 2*Mini-PCIe (1*mSATA, 1*Wifi/3G/4G)
• 6*COM, 8*USB 3.0, 2*SATA,1*PCIe x16, 1*PCIe 1x, 2*MIOE(2*PCIe x1) for I/O Expansion
• Supports Triple display of HDMI, DP and DVI-I

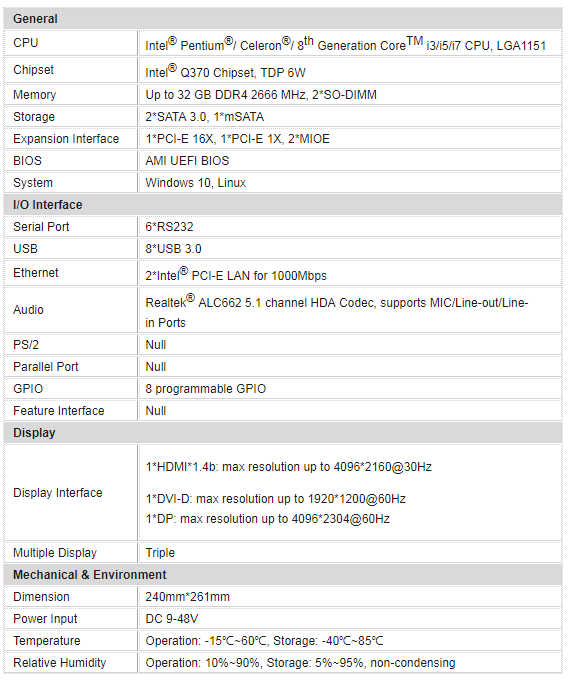

规格
