信步科技SKM-Q270嵌入式主板介绍

Smart Kiosk Box Computer based on Intel SKM, dedicated to Kiosks in Banking, Transportation, Healthcare and Public segments.

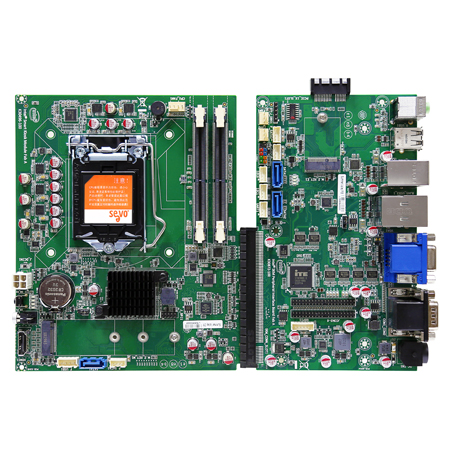

• Separate compute module from IO docking board, Easier maintenance and upgradability.
• compute module can fits different IO expansion module to met wide range of Kiosk application.
• Support Intel® 6/7th Gen Core i3/i5/i7 & Pentium®/ Celeron® Processor (Skylake/ Kaby Lake) with Intel® Q270 Chipset
• 2*SO-DIMM, Up to 32 GB DDR4 1866/2133 MHz
• 1*M.2 Key M 2280 (NVME SSD), 1*M.2 Key E 2230 (WiFi/BT), 1*PCI-E 1X

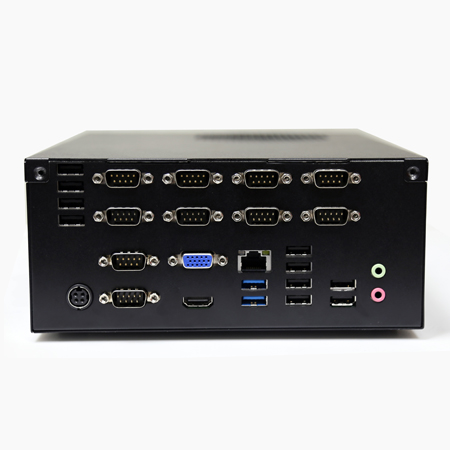

• 10*COM, 2*USB 3.0, 10*USB 2.0, 2*SATA 3.0
• 1*Intel I219-LM GbE, supports Intel® vPro™ Technology
• Supports Dual display of VGA and HDMI

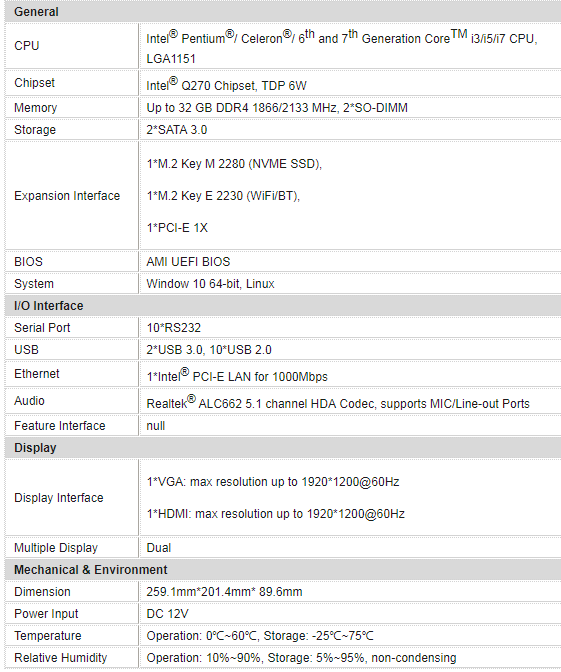

规格
