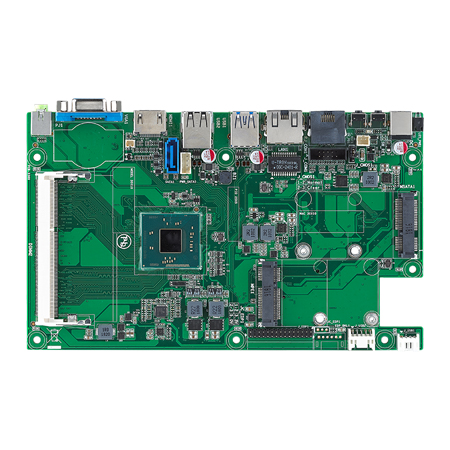

信步科技SV-1900-DS嵌入式主板介绍

时间：2019-09-30 10:09

人气：

作者：admin

导读：Support Intel Bay Trail J1900 CPUDesigned for Digital Signage/Multimedia display device Motherboard6*USB, 2*COM, 1*1000 Mbps LANSupport dual display of VGA , 1*HDM and eDP2*Mini-PCIe (Support 1*mSATA, 1*Wifi+3G/4G)...

Intel Bay Trail J1900 CPU, 1*VGA, 1*HDMI, 1*eDP, 2*Mini-PCIe, DC 12V Input

Support Intel Bay Trail J1900 CPU
Designed for Digital Signage/Multimedia display device Motherboard
6*USB, 2*COM, 1*1000 Mbps LAN
Support dual display of VGA , 1*HDM and eDP
2*Mini-PCIe (Support 1*mSATA, 1*Wifi+3G/4G)

规格

General
CPU	Intel^®Celeron^®J1900 CPU, Quad-core, up to 2.42GHz, TDP 10W
Chipset	Null
Memory	DDR3L-1333, 2*SO-DIMM, up to 16 GB
Storage	1SATA 2.0, 1mSATA
Expansion Interface	2Mini-PCIe (1mSATA, 1*Wifi/3G/4G Supported)
BIOS	AMI UEFI BIOS
System	Windows7/8/10, Linux
I/O Interface
Serial Port	2*RS232
USB	1USB 3.0, 5USB 2.0
Ethernet	1*Realtek^®1Gbps PCIe Ethernet Controller, RJ45
Audio	Realtek^®5.1 channel HDA Codec, with MIC/Line-out
PS/2	Null
Parallel Port	Null
GPIO	Null
Feature Interface	Null
Display
Display Interface	1VGA: max resolution up to 25601600@60Hz 1HDMI: max resolution up to 19201200@60Hz 1eDP: max resolution up to 19201200@60Hz
Multiple Display	Dual
Mechanical & Environment
Dimension	185*110mm
Power Input	DC 12V
Temperature	Operation: 0℃~60℃, Storage: -25℃~75℃
Relative Humidity	Operation: 10%~90%, Storage: 5%~95%, non-condensing
