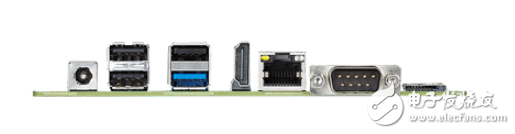

ARM Rockchip RK3399 CPU, 6*COM, 7*USB, 1*LAN, 1*Mini-PCIe, 2*Touch Panel, WIFI+BT on board
| General | |
| CPU |
ARMRockchip®RK3399, Dual-Core Cortex-A72 + Quad-Core Cortex-A53, up to 1.8GHz and1.4GHz |
| Chipset | Null |
| Memory | DDR3-1333, 1/2/4GB, on board |
| Storage | 1*eMMC 8/16/32G, 1*TF Card |
| Expansion Interface | 1*Mini-PCIe (Wifi/3G/4G Supported) |
| BIOS | Null |
| System | Android 4.4/5.1/7.1 |
| I/O Interface | |
| Serial Port | 6*RS232 (COM1 RS485 optional) |
| USB | 1*USB 3.0, 6*USB 2.0 |
| Ethernet |
1*Realtek®1Gbps PCIe Ethernet Controller, RJ45 1*RealtekWIFI+BT module on board (Wifi IEEE 802.11a/b/g/n/ac, 2.4GHz/5GHz, BT 4.2 support BLE) |
| Audio | Everest®Codec, with MIC/Line-out and Amplifier |
| PS/2 | Null |
| Parallel Port | Null |
| GPIO | 8 programmable GPIO |
| Feature Interface |
2*TouchPanel Header (USB only) 1*Infrared Header |
| Display | |
| Display Interface |
1*HDMI: max resolution up to 4096*2160@60Hz 1*eDP: max resolution up to 4096*2160@30Hz 1*LVDS/eDP: LVDS, Dual Channel 24 bit,resolution up to 1920*1080@60Hz eDP, resolution up to 4096*2160@30Hz |
| Multiple Display | Dual |
| Mechanical & Environment | |
| Dimension | 146*105mm |
| Power Input | DC 12V |
| Temperature | Operation: 0℃~60℃, Storage: -25℃~75℃ |
| Relative Humidity | Operation: 10%~90%, Storage: 5%~95%, non-condensing |
