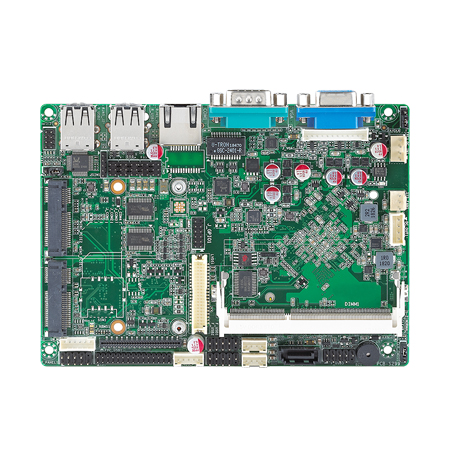

Intel Bay Trail J1900处理器, 6*COM, 9*USB, 支持双eDP显示, 背置CPU, 3.5寸 (146*105mm)
| General | |
| CPU | Intel® Celeron® J1900[1] CPU, Quad-core, up to2.42 GHz, TDP 10W |
| Chipset | Null |
| Memory | DDR3L-1333, 1*SO-DIMM, up to 8 GB |
| Storage | 1*SATA 2.0, 1*mSATA |
| Expansion Interface | 2*Mini-PCIe (1*mSATA Supported, 1*Wifi/3G/4G Supported) |
| BIOS | AMI UEFI BIOS |
| System | Windows7/8/10, Linux |
| I/O Interface | |
| Serial Port | 5*RS232, 1*TTL |
| USB | 1*USB 3.0, 8*USB 2.0 |
| Ethernet | 1*Realtek® 1Gbps PCIe Ethernet Controller, RJ45 |
| Audio | Realtek® ALC662 5.1 channel HDA Codec, supports MIC/Line-out Ports |
| PS/2 | 1*PS/2 |
| Parallel Port | Null |
| GPIO | 8 programmable GPIO |
| Feature Interface | Null |
| Display | |
| Display Interface |
1*VGA: max resolution up to 2560*1600@60Hz 2*eDP: max resolution up to 1920*1200@60Hz |
| Multiple Display | Dual |
| Mechanical & Environment | |
| Dimension | 146*105mm |
| Power Input | DC 12V |
| Temperature | Operation: 0℃~60℃, Storage: -25℃~75℃ |
| Relative Humidity | Operation: 10%~90%, Storage: 5%~95%, non-condensing |
