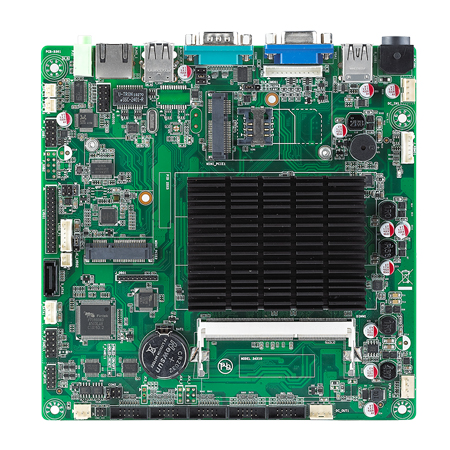

Intel Bay Trail J1900处理器, 6*COM, 6*USB, 2*Mini-PCIe, DC 12V供电
| General | |
| CPU | Intel® Celeron® J1900 CPU, Quad-core, up to 2.42GHz, TDP 10W |
| Chipset | Null |
| Memory | DDR3L-1333, 1*SO-DIMM, up to 8 GB |
| Storage | 1*SATA 2.0, 1*mSATA |
| Expansion Interface | 2*Mini-PCIe (1*mSATA, 1*Wifi/3G/4G Supported) |
| BIOS | AMI UEFI BIOS |
| System | Windows7/8/10, Linux |

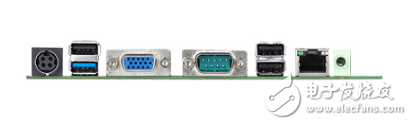

| I/O Interface | |
| Serial Port | 6*RS232 (COM2 RS422/RS485 optional) |
| USB | 1*USB 3.0, 5*USB 2.0 |
| Ethernet | 1*Realtek® 1Gbps PCIe Ethernet Controller, RJ45 |
| Audio | Realtek® 5.1 channel HDA Codec, with MIC/Line-out and Amplifier |
| PS/2 | 1*PS/2 |
| Parallel Port | Null |
| GPIO | 8 programmable GPIO |
| Feature Interface | Null |
| Display | |
| Display Interface |
1*VGA: max resolution up to 2560*1600@60Hz 1*LVDS/eDP: LVDS, Dual Channel 24 bit,max resolution up to 1920*1200@60Hz eDP, max resolution up to 1920*1200@60Hz |
| Multiple Display | Dual |
| Mechanical & Environment | |
| Dimension | Mini-ITX, 170*170mm |
| Power Input | DC 12V |
| Temperature | Operation: 0℃~60℃, Storage: -25℃~75℃ |
| Relative Humidity | Operation: 10%~90%, Storage: 5%~95%, non-condensing |
