Intel 8代/9代Core i3/i5/i7处理器（LGA1151）, 10*COM，12*USB，2*LAN，1*PCI-E 16X，2*Mini-PCIe
| General | |
| CPU | Intel® 8th/9th Generation Core™i3/i5/i7, Pentium®, Celeron® CPU, LGA1151 |
| Chipset | Intel® H310, TDP 6W |
| Memory | DDR4-2400, 2*U-DIMM, up to 32 GB |
| Storage | 2*SATA 3.0, 1*mSATA |
| Expansion Interface |
1*PCI-E 16X 2*Mini-PCIe (1*mSATA Supported, 1*Wifi/3G/4G Supported) |
| BIOS | AMI UEFI BIOS |
| System | Windows7/8/10, Linux |

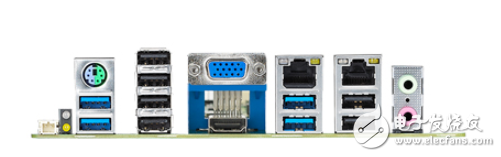

| I/O Interface | |
| Serial Port | 10*RS232 |
| USB | 4*USB 3.0, 8*USB 2.0 |
| Ethernet | 2*Realtek® 1Gbps PCIe Ethernet Controller, RJ45 |
| Audio | Realtek® 5.1 channel HDA Codec, with MIC/Line-out/Line-in |
| PS/2 | 1*PS/2 |
| Parallel Port | Null |
| GPIO | 8 programmable GPIO |
| Feature Interface | Null |
| Display | |
| Display Interface |
1*VGA: max resolution up to 1920*1200@60Hz 1*HDMI: max resolution up to 1920*1200@60Hz |
| Multiple Display | Dual |
| Mechanical & Environment | |
| Dimension | Mini-ITX, 170*170mm |
| Power Input | ATX PSU |
| Temperature | Operation: 0℃~60℃, Storage: -25℃~75℃ |
| Relative Humidity | Operation: 10%~90%, Storage: 5%~95%, non-condensing |
