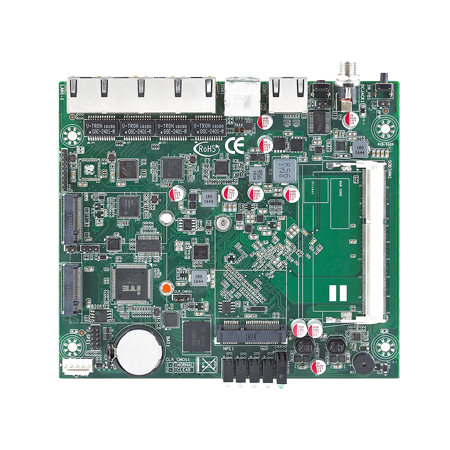

Intel Rangeley C2316处理器, 4*Intel千兆网卡, 2*M.2, 1*Mini-PCIe, DC 12V供电
| General | |
| CPU | Intel Atom™ C2316 CPU, Dual-core, 1.5 GHz, TDP 7W |
| Chipset | Null |
| Memory | DDR3-1333, 1*SO-DIMM, up to 16 GB |
| Storage | 1*M.2 SATA |
| Expansion Interface |
1*Mini-PCIe (1*Wifi supported) 2*M.2 (1*SATA,1*Wifi/3G/4G supported) |
| BIOS | AMI UEFI BIOS |
| System | Windows7/8/10, Linux |

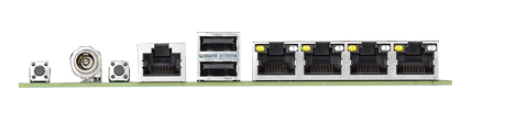

| I/O Interface | |
| Serial Port | 1*RS232 |
| USB | 2*USB 2.0 |
| Ethernet |
2*Intel® 1Gbps PCIe Ethernet Controller, RJ45 2*Marvell® 1Gbps PCIe Ethernet Controller, RJ45 |
| Audio | Null |
| PS/2 | Null |
| Parallel Port | Null |
| GPIO | Null |
| Feature Interface | Null |
| Display | |
| Display Interface | Null |
| Multiple Display | Null |
| Mechanical & Environment | |
| Dimension | 148*130mm |
| Power Input | DC 12V |
| Temperature | Operation: 0℃~60℃, Storage: -25℃~75℃ |
| Relative Humidity | Operation: 10%~90%, Storage: 5%~95%, non-condensing |
