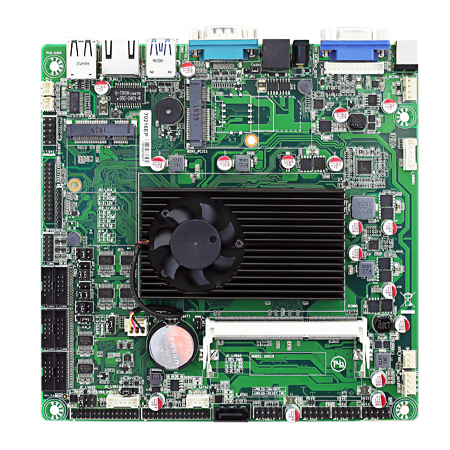

Intel Kaby Lake-U Core i3-7020U处理器, 6*COM, 10*USB, 支持双eDP显示, 提供钱箱接口
| General | |
| CPU | Intel® CoreTM i3-7020U, Dual-core, clock speed2.30 GHz, TDP 15W |
| Chipset | Null |
| Memory | Up to 8 GB DDR3L 1600 MHz, 1*SO-DIMM |
| Storage | 1*SATA 3.0, 1*mSATA |
| Expansion Interface | 2*Mini-PCIe (1*mSATA Supported, 1*Wifi/3G/4G Supported) |
| BIOS | AMI UEFI BIOS |
| System | Windows7/8/10, Linux |
| I/O Interface | |
| Serial Port | 6*RS232 |
| USB | 2*USB 3.0, 8*USB 2.0 |
| Ethernet | 1*Realtek® PCI-E LAN for 1000Mbps |
| Audio |
Realtek® ALC662 5.1 channel HDA Codec, supports MIC/Line-out Ports 1*Amplifier |
| PS/2 | 1*PS/2 |
| Parallel Port | 1*LPT |
| GPIO | 8 programmable GPIO |
| Feature Interface |
1*RJ11 Port (Cash Drawer) 1*Cash2 Open Pin Header |
| Display | |
| Display Interface |
1*VGA: max resolution up to 1920*1200@60Hz |
| Multiple Display | Triple |
| Mechanical & Environment | |
| Dimension | Mini-ITX, 170*170mm |
| Power Input | DC 12V |
| Temperature | Operation: 0℃~60℃, Storage: -25℃~75℃ |
| Relative Humidity | Operation: 10%~90%, Storage: 5%~95%, non-condensing |
