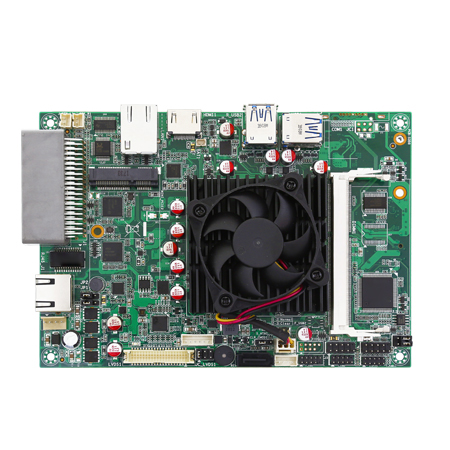

Intel Skylake-U 3855U处理器, 人脸识别闸机专用, 提供MX34车载端子, DC 24V供电, 4寸
| General | |
| CPU | Intel® Skylake-U Celeron® 3855U, Dual-core, clockspeed 1.6 GHz, TDP 15W |
| Chipset | Null |
| Memory | Up to 8 GB DDR3L 1600/1333MHz, 1*SO-DIMM |
| Storage | 1*SATA 3.0, 1*mSATA |
| Expansion Interface |
2*Mini-PCIe (1*mSATA Supported, 1*Wifi/3G/4G Supported) 1*MX34 (4*USB2.0, 3*RS232, 1*RS232/485, 1*Audio line-out) |
| BIOS | AMI UEFI BIOS |
| System | Windows7/8/10, Linux |
| I/O Interface | |
| Serial Port | 4*RS232, 1*RS232/RS485 |
| USB | 4*USB 3.0, 1*USB 2.0 |
| Ethernet | 2*Intel ® PCI-E LAN for 1000Mbps |
| Audio |
Realtek® ALC662 5.1 channel HDA Codec, supports MIC/Line-out Ports 1*Amplifier |
| PS/2 | Null |
| Parallel Port | Null |
| GPIO | 8 programmable GPIO |
| Feature Interface | Null |
| Display | |
| Display Interface |
1*LVDS/eDP: LVDS, Dual channel 24 bit, max resolution up to 1920*1200@60Hz |
| Multiple Display | Dual |
| Mechanical & Environment | |
| Dimension | 4 inch, 165*115mm |
| Power Input | DC 24V |
| Temperature | Operation: 0℃~60℃, Storage: -25℃~75℃ |
| Relative Humidity | Operation: 10%~90%, Storage: 5%~95%, non-condensing |
