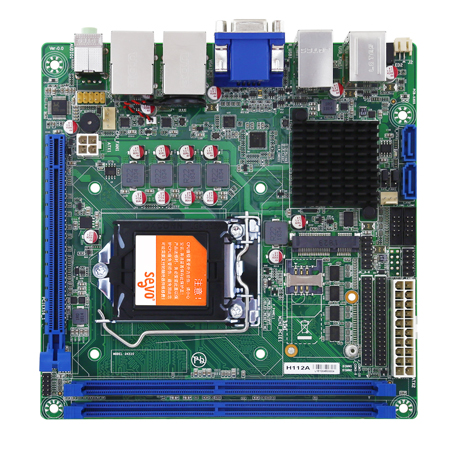

信步科技SV1-H112A嵌入式主板介绍

时间：2019-10-12 16:01

人气：

作者：admin

导读：支持Intel 6/7代Core i3/i5/i7处理器(LGA1151)采用Intel H110芯片组提供10*COM, 10*USB, 2*千兆LAN提供1*VGA, 1*HDMI, 支持双屏异显提供1*PCI-E 16X, 2*Mini-PCIe (支持1*mSATA, 1*Wifi/3G/4G)...

Intel 6/7代Core i3/i5/i7处理器(LGA1151), 10*COM, 10*USB, 2*LAN, 1*PCI-E 16X, 2*Mini-PCIe

支持Intel 6/7代Core i3/i5/i7处理器(LGA1151)
采用Intel H110芯片组
提供10*COM, 10*USB, 2*千兆LAN
提供1*VGA, 1*HDMI, 支持双屏异显
提供1*PCI-E 16X, 2*Mini-PCIe (支持1*mSATA, 1*Wifi/3G/4G)

规格

General
CPU	Intel^® Pentium^®/ Celeron^®/ 6^th and 7^th Generation Core^TM i3/i5/i7 CPU, LGA1151
Chipset	Intel^®H110 Chipset, TDP 6W
Memory	Up to 32 GB DDR4 2133 MHz, 2*DIMM
Storage	2SATA 3.0, 1mSATA
Expansion Interface	1PCI-E 16X, 2Mini-PCIe (1mSATA Supported, 1Wifi/3G/4G Supported)
BIOS	AMI UEFI BIOS
System	Windows7/8/10, Linux

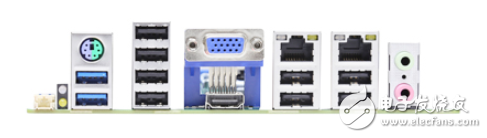

I/O Interface
Serial Port	10*RS232
USB	2USB 3.0, 8USB 2.0
Ethernet	2*Realtek^® PCI-E LAN for 1000Mbps
Audio	Realtek^® ALC662 5.1 channel HDA Codec, supports MIC/Line-out Ports
PS/2	1*PS/2
Parallel Port	Null
GPIO	8 programmable GPIO
Feature Interface	Null
Display
Display Interface	1VGA: max resolution up to 19201200@60Hz 1HDMI: max resolution up to 19201200@60Hz
Multiple Display	Dual
Mechanical & Environment
Dimension	Mini-ITX, 170*170mm
Power Input	ATX PSU
Temperature	Operation: 0℃~60℃, Storage: -25℃~75℃
Relative Humidity	Operation: 10%~90%, Storage: 5%~95%, non-condensing
