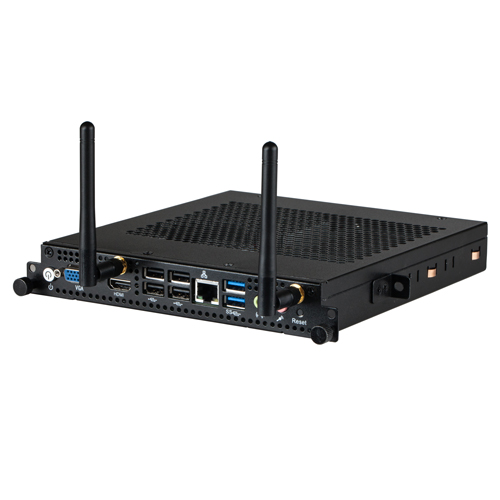

Intel® Kaby Lake-U Celeron 3865U CPU, OPS, Dual display of VGA and HDMI, 4K UHD, Wifi+BT, DC 12V Input
| General | |
| CPU | Intel® Kaby Lake-U Celeron® 3855U CPU, Dual-core, 1.8 GHz,TDP 15W |
| Chipset | Null |
| Memory | Up to 8 GB DDR3L 1600 MHz, 1*SO-DIMM |
| Storage | 1*SATA 3.0 (22Pin), 1*mSATA |
| Expansion Interface |
2*Mini-PCIe (1*mSATA Supported,1*Wifi/3G/4G Supported) 1*OPC Port |
| BIOS | AMI UEFI BIOS |
| System | Windows 10 x64, Linux |
| I/O Interface | |
| Serial Port | 1*RS232 |
| USB | 2*USB 3.0+2*USB 2.0 (rear I/O), 1*USB 3.0+2*USB 2.0 (OPS) |
| Ethernet |
1*Realtek® PCI-E LAN for 1000Mbps 1*Realtek® Wifi+BTmodule 2.4 GHz |
| Audio | Realtek® ALC662 5.1 channel HDA Codec, supports MIC/Line-outPorts |
| PS/2 | Null |
| Parallel Port | Null |
| GPIO | Null |
| Feature Interface | 1*Antenna Terminal Connector |
| Display | |
| Display Interface |
1*VGA: max resolution up to 1920*1200@60Hz |
| Multiple Display | Dual |
| Mechanical & Environment | |
| Dimension | 170*190mm |
| Power Input | DC 12V |
| Temperature | Operation: 0℃~60℃, Storage: -25℃~75℃ |
| Relative Humidity | Operation: 10%~90%, Storage: 5%~95%, non-condensing |
