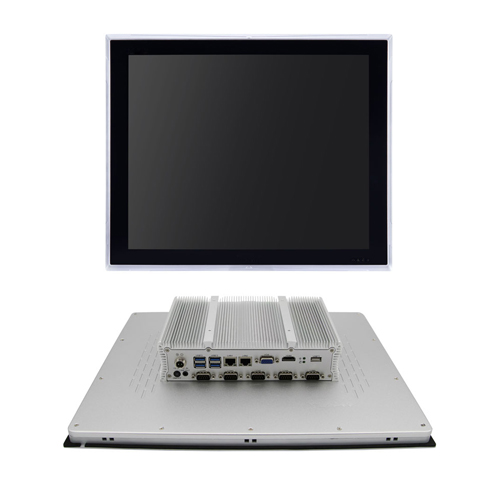

Intel Kaby Lake 7th Gen Core i3/i5/i7 CPU (LGA1151) with H270, 6*COM, 12*USB, 2* Intel LAN, 2*Mini-PCIe
| General | |
| CPU | Intel® Kaby Lake Pentium®/ Celeron®/ 7thGeneration CoreTM i3/i5/i7 CPU, LGA1151 |
| Chipset | Intel® H270 Chipset, TDP 6W |
| Memory | Up to 32GB DDR4 2133/1866 MHz, 2*SO-DIMM |
| Storage | 2*SATA 3.0, 1*mSATA |
| Expansion Interface |
2*Mini-PCIe (1*mSATA Supported, 1*3G/4G Supported) |
| BIOS | AMI UEFI BIOS |
| System | Windows 10 x64, Linux |
| I/O Interface | |
| Serial Port | 6*RS232 |
| USB | 4*USB 3.0, 8*USB 2.0 (4*on rear I/O, 8*header) |
| Ethernet | 2*Intel® PCI-E LAN for 1000Mbps |
| Audio | Realtek® ALC662 5.1 channel HDA Codec, supports MIC/Line-outPorts |
| PS/2 | 1*PS/2 (Keyboard and Mouse Supported) |
| Parallel Port | Null |
| GPIO | 8 programmable GPIO |
| Feature Interface | Null |
| Display | |
| Display Interface |
1*VGA: max resolution up to 1920*1200@60Hz 1*LVDS/eDP:Dual Channel 24bit, max resolution up to 1920*1200@60Hz |
| Multiple Display | Dual |
| Mechanical & Environment | |
| Dimension |
406*334*80mm |
| Power Input | DC 24V |
| Temperature | Operation: 0℃~60℃, Storage: -25℃~75℃ |
| Relative Humidity | Operation: 10%~90%, Storage: 5%~95%, non-condensing |
