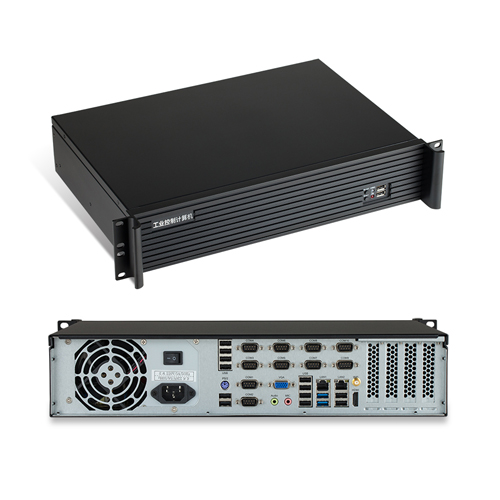

Intel® Kaby Lake-U Celeron® 3865U CPU, 10*COM, 14*USB, 2*Mini-PCIe
| General | |
| CPU | Intel® Kaby Lake-U Celeron® 3865U CPU, Dual-core,1.8 GHz,TDP 15W |
| Chipset | Null |
| Memory | Up to 8 GB DDR3L 1600/1333 MHz, 1*SO-DIMM |
| Storage | 1*SATA 3.0, 1*mSATA |
| Expansion Interface |
1*PCI-E 16X (4X Signal) 2*Mini-PCIe (1*mSATASupported, 1*Wifi/3G/4G Supported) |
| BIOS | AMI UEFI BIOS |
| System | Windows7/8/10, Linux |
| I/O Interface | |
| Serial Port | 10*RS232 |
| USB | 2*USB 3.0, 12*USB 2.0 |
| Ethernet | 2*Realtek® PCI-E LAN for 1000Mbps |
| Audio | Realtek® ALC662 5.1 channel HDA Codec, supports MIC/Line-outPorts |
| PS/2 | 1*PS/2 |
| Parallel Port | Null |
| GPIO | 8 programmable GPIO |
| Feature Interface | Null |
| Display | |
| Display Interface |
1*VGA: max resolution up to 1920*1200 1*HDMI:max resolution up to 4096*2160 |
| Multiple Display | Triple |
| Mechanical & Environment | |
| Power Input | ATX PSU or DC 12V |
| Temperature | Operation: 0℃~60℃, Storage: -25℃~75℃ |
| Relative Humidity | Operation: 10%~90%, Storage: 5%~95%, non-condensing |
