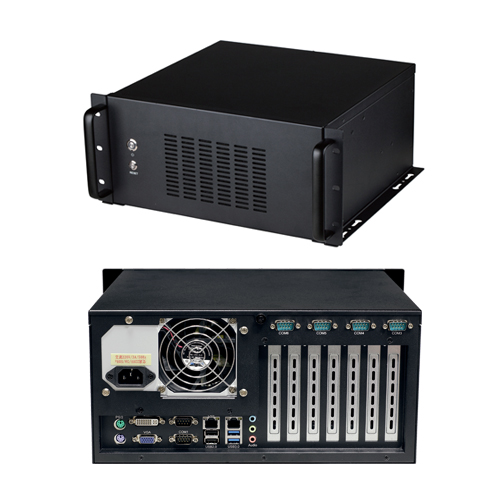

Intel Coffee Lake 8th Gen Core i3/i5/i7 CPU (LGA1151) with Q370, 4*PCI-E, 3*PCI, 6*COM, 2*Intel LAN, 6*SATA 3.0
| General | |
| CPU | Intel® Pentium®/ Celeron®/ 8th Generation CoreTM i3/i5/i7 CPU, LGA1151 |
| Chipset | Intel® Q370 Chipset, TDP 6W |
| Memory | Up to 64 GB DDR4 2666/2400 MHz, 4*DIMM |
| Storage | 5*SATA 3.0, 1*SATA3.0/ mSATA |
| Expansion Interface | 1*PCI-E 16X, 1*PCI-E 8X, 2*PCI-E 4X, 3*PCI |
| BIOS | AMI UEFI BIOS |
| System | Windows 10 x64, Linux |
| I/O Interface | |
| Serial Port | 6*RS232 (COM3, COM4 RS485 optional) |
| USB | 6*USB 3.0, 7*USB 2.0 (6*on rear I/O, 6*header, 1*Type-A port) |
| Ethernet | 2*Intel® PCI-E LAN for 1000Mbps |
| Audio | Realtek® ALC662 5.1 channel HDA Codec, supports MIC/Line-out/Line-inPorts |
| PS/2 | 1*PS/2 |
| Parallel Port | Null |
| GPIO | 8 programmable GPIO |
| Feature Interface | Null |
| Display | |
| Display Interface |
1*VGA: max resolution up to 1920*1200 1*HDMI 1.4b: max resolution up to 4096*2160 |
| Multiple Display | Triple |
| Mechanical & Environment | |
| Power Input | ATX PSU |
| Temperature | Operation: 0℃~60℃, Storage: -25℃~75℃ |
| Relative Humidity | Operation: 10%~90%, Storage: 5%~95%, non-condensing |
