信步科技SV1a-H2716P嵌入式主板介绍

时间：2019-10-18 09:26

人气：

作者：admin

导读：Supports Intel® Kaby Lake 7th Gen Core i3/i5/i7 CPU (LGA1151) with Intel H270 chipset6*COM, 10*USB, 1*1000 Mbps LANWith SVIO support SV-M6 I/O Module to extend COM/USB/PCISupports dual display of VGA, HDMI and LVDS/eDP2*Mini-PCIe (Supports...

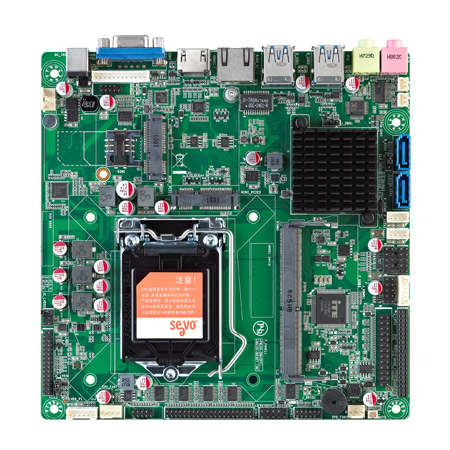

Intel® Kaby Lake 7th Gen Core i3/i5/i7 CPU (LGA1151) with H270, 6*COM, 10*USB, 1*LAN, 2*Mini-PCIe

Supports Intel® Kaby Lake 7th Gen Core i3/i5/i7 CPU (LGA1151) with Intel H270 chipset
6*COM, 10*USB, 1*1000 Mbps LAN
With SVIO support SV-M6 I/O Module to extend COM/USB/PCI
Supports dual display of VGA, HDMI and LVDS/eDP
2*Mini-PCIe (Supports 1*mSATA, 1*Wifi+3G/4G)

规格

General
CPU	Intel^® KabyLakePentium^®/ Celeron^®/ 7^th Generation Core^TM i3/i5/i7 CPU, LGA1151
Chipset	Intel^® H270 Chipset, TDP 6W
Memory	Up to 16 GB DDR4 2133/1866 MHz, 1*SO-DIMM
Storage	2SATA 3.0, 1mSATA
Expansion Interface	2Mini-PCIe（1mSATA Supported, 1*Wifi/3G/4G Supported）
BIOS	AMI UEFI BIOS
System	Windows 10 x64, Linux

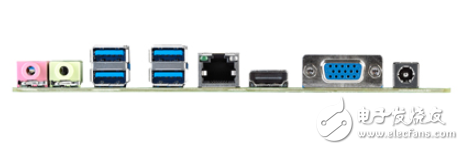

I/O Interface
Serial Port	6*RS232
USB	4USB 3.0, 6USB 2.0 (4on rear I/O, 6header)
Ethernet	1*Realtek^® PCI-E LAN for 1000Mbps
Audio	Realtek^® ALC662 5.1 channelHDA Codec, supports MIC/Line-out Ports 1*Amplifier
PS/2	1*PS/2 header
Parallel Port	Null
GPIO	8 programmable GPIO
Feature Interface	Null
Display
Display Interface	1VGA：max resolution up to 19201200 1HDMI：max resolution up to 40962160 1LVDS/eDP：Dual Channel 24bitLVDS, max resolution up to 19201200
Multiple Display	Dual
Mechanical & Environment
Dimension	Mini-ITX, 170*170mm
Power Input	DC 12V
Temperature	Operation: 0℃~60℃, Storage: -25℃~75℃
Relative Humidity	Operation: 10%~90%, Storage: 5%~95%, non-condensing
