信步科技SV1-H2716嵌入式主板介绍

时间：2019-10-18 09:36

人气：

作者：admin

导读：Supports Intel® Kaby Lake 7th Gen Core i3/i5/i7 CPU (LGA1151) with Intel H270 chipset6*COM, 12*USB, 1*1000 Mbps LANSupports dual display of VGA and HDMI1*Mini-PCIe (Supports 1*mSATA or 1*Wifi/3G/4G)...

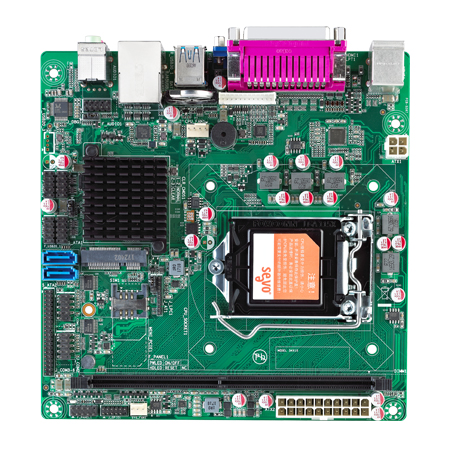

Intel® Kaby Lake 7th Gen Core i3/i5/i7 CPU (LGA1151) with H270, 6*COM, 12*USB, 1*LAN, 1*Mini-PCIe

Supports Intel® Kaby Lake 7th Gen Core i3/i5/i7 CPU (LGA1151) with Intel H270 chipset
6*COM, 12*USB, 1*1000 Mbps LAN
Supports dual display of VGA and HDMI
1*Mini-PCIe (Supports 1*mSATA or 1*Wifi/3G/4G)

规格

General
CPU	Intel^® Kaby Lake Pentium^®/ Celeron^®/ 7^thGeneration Core^TM i3/i5/i7 CPU, LGA1151
Chipset	Intel^® H270 Chipset, TDP 6W
Memory	Up to 16 GB DDR4 2133/1866 MHz, 1*DIMM
Storage	2SATA 3.0, 1mSATA
Expansion Interface	1*Mini-PCIe（mSATA or Wifi/3G Supported）
BIOS	AMI UEFI BIOS
System	Windows10 x64, Linux

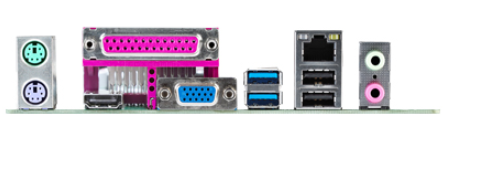

I/O Interface
Serial Port	6*RS232
USB	2USB 3.0, 10USB 2.0 (4on rear I/O, 8header)
Ethernet	1*Realtek^® PCI-E LAN for 1000Mbps
Audio	Realtek^® ALC662 5.1 channel HDA Codec, supports MIC/Line-outPorts
PS/2	1*PS/2 (Keyboard and Mouse Supported)
Parallel Port	1* LPT
GPIO	8 programmable GPIO
Feature Interface	Null
Display
Display Interface	1VGA：max resolution up to 19201200 1HDMI：max resolution up to 40962160
Multiple Display	Dual
Mechanical & Environment
Dimension	Mini-ITX, 170*170mm
Power Input	ATX PSU
Temperature	Operation: 0℃~60℃, Storage: -25℃~75℃
Relative Humidity	Operation: 10%~90%, Storage: 5%~95%, non-condensing
