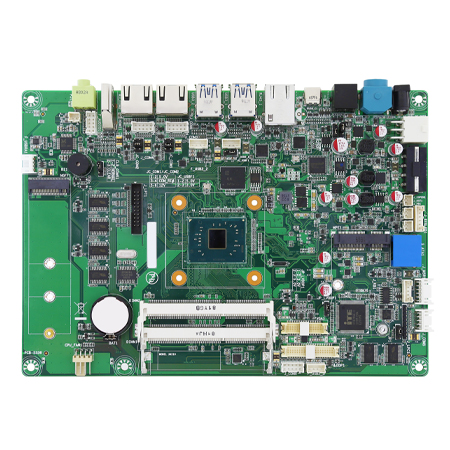

信步科技SV-APL-5嵌入式主板介绍

时间：2019-10-22 09:04

人气：

作者：admin

导读：Intel® Apollo Lake Celeron N3450 CPU6*COM, 10*USB, 1*1000 Mbps LANSupports triple display of VGA, HDMI and eDP1*M.2 (PCIe X4 support - also supports SATA & PCIe X2)1*Mini-PCIe (Supports mSATA)Supports DC 12V Input...

Intel® Apollo Lake Celeron N3450 CPU, 6*COM, 9*USB, Supports triple display, 1*M.2, DC 12V Input

Intel® Apollo Lake Celeron N3450 CPU
6*COM, 10*USB, 1*1000 Mbps LAN
Supports triple display of VGA, HDMI and eDP
1*M.2 (PCIe X4 support - also supports SATA & PCIe X2)
1*Mini-PCIe (Supports mSATA)
Supports DC 12V Input

规格

General
CPU	Intel^® Apollo Lake Celeron^® N3450 CPU, Quad-core, up to 2.2 GHz, TDP 6W
Chipset	Null
Memory	Up to 16GB DDR3L 1866 MHz, 2*SO-DIMM
Storage	1SATA 3.0, 1mSATA, 1*NGFF
Expansion Interface	1Mini-PCIe (mSATA Supported) 1M.2 (PCIe X4 support - also supports SATA & PCIe X2)
BIOS	AMI UEFI BIOS
System	Windows 10 x64, Linux
I/O Interface
Serial Port	6*RS232
USB	5USB 3.0, 4USB 2.0
Ethernet	1*Realtek^® PCI-E LAN for 1000Mbps
Audio	Realtek^® ALC662 5.1 channel HDA Codec, supports MIC/Line-out Ports 1*Amplifier
PS/2	1*PS/2
Parallel Port	1*LPT
GPIO	Null
Feature Interface	1*CashDrawer Control Port
Display
Display Interface	1VGA: max resolution up to 19201200 1HDMI: max resolution up to 40962160 1eDP : max resolution up to 25601600
Multiple Display	Triple
Mechanical & Environment
Dimension	218*155mm
Power Input	DC 12V
Temperature	Operation: 0℃~60℃, Storage: -25℃~75℃
Relative Humidity	Operation: 10%~90%, Storage: 5%~95%, non-condensing
