信步科技SV-CFL-S2嵌入式主板介绍

时间：2019-10-18 09:40

人气：

作者：admin

导读：Supports Intel® Coffee Lake 8th Gen Core i3/i5/i7 CPU (LGA1151) with Intel Q370 Chipset, Supports AMT1*M.2 (PCIe X4 support - also supports SATA & PCIe X2)2*Intel Ethernet Controller i211/i2104*COM, 4*USB 3.0, 4*USB 2.0, 3*SATA 3.0Supports...

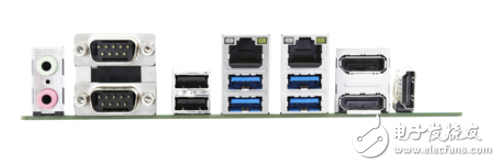

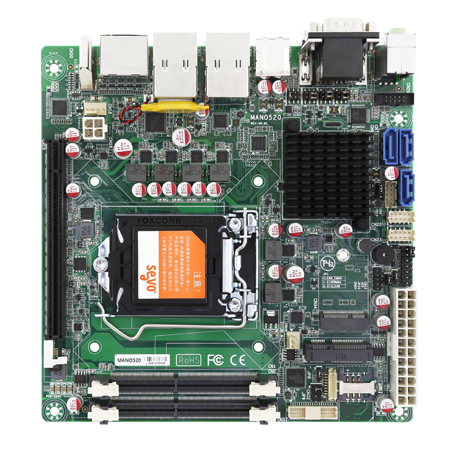

Intel® Coffee Lake 8th Gen Core i3/i5/i7 CPU (LGA1151) with Q370, 4*COM, 8*USB, 2*Intel LAN, 3*SATA 3.0, 1*M.2

Supports Intel® Coffee Lake 8th Gen Core i3/i5/i7 CPU (LGA1151) with Intel Q370 Chipset, Supports AMT
1*M.2 (PCIe X4 support - also supports SATA & PCIe X2)
2*Intel Ethernet Controller i211/i210
4*COM, 4*USB 3.0, 4*USB 2.0, 3*SATA 3.0
Supports Triple display of 2*DP, HDMI and LVDS
1*PCI-E 16X, 1*Mini-PCIe

规格

General
CPU	Intel^® Pentium^®/ Celeron^®/ 8^th Generation Core^TM i3/i5/i7 CPU, LGA1151
Chipset	Intel^® Q370 Chipset, TDP 6W
Memory	Up to 32 GB DDR4 2400 MHz, 2*SO-DIMM
Storage	3SATA 3.0, 1mSATA
Expansion Interface	1PCI-E 16X, 1Mini-PCIe 1*M.2 (PCIe X4 support - also supports SATA & PCIe X2)
BIOS	AMI UEFI BIOS
System	Windows 10 x64, Linux
I/O Interface
Serial Port	4*RS232
USB	4USB 3.0, 4USB 2.0
Ethernet	2*Intel^® PCI-E LAN for 1000Mbps
Audio	Realtek^® ALC662 5.1 channel HDA Codec, supports MIC/Line-out Ports
PS/2	Null
Parallel Port	Null
GPIO	8 programmable GPIO
Feature Interface	Null
Display
Display Interface	1HDMI 1.4b：max resolution up to 40962160 2DP：max resolution up to 40962160 1LVDS：Dual Channel 24bit LVDS, max resolution up to 19201200
Multiple Display	Triple
Mechanical & Environment
Dimension	Mini-ITX, 170*170mm
Power Input	ATX PSU
Temperature	Operation: 0℃~60℃, Storage: -25℃~75℃
Relative Humidity	Operation: 10%~90%, Storage: 5%~95%, non-condensing
